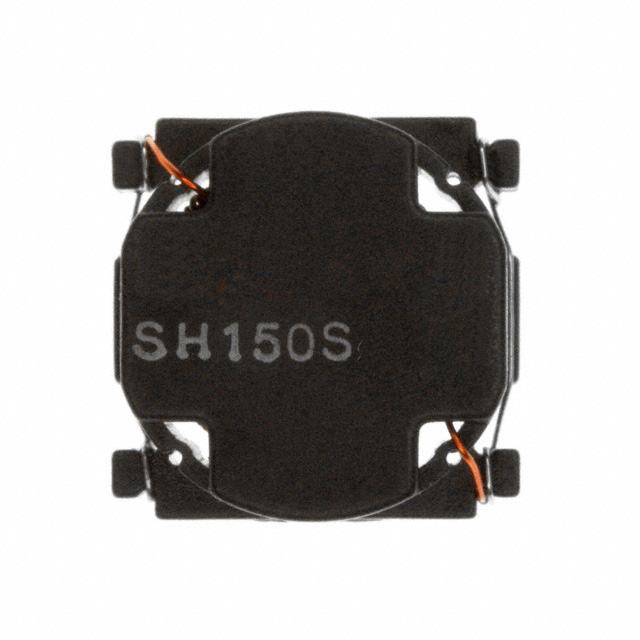

SH150S-1.81-168
ActiveAmgis, LLC
FIXED IND 168UH 1.81A 180MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SH150S-1.81-168
ActiveAmgis, LLC
FIXED IND 168UH 1.81A 180MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SH150S-1.81-168 |
|---|---|
| Current Rating (Amps) | 1.81 A |
| DC Resistance (DCR) | 180 mOhm |
| Height - Seated (Max) [Max] [z] | 10.85 mm |
| Height - Seated (Max) [Max] [z] | 0.427 " |
| Inductance | 168 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.957 in |
| Size / Dimension [x] | 24.3 mm |
| Size / Dimension [y] | 23.5 mm |
| Size / Dimension [y] | 0.925 in |
| Tolerance | 20 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.87 | |
| Digi-Reel® | 1 | $ 6.87 | ||
| Tape & Reel (TR) | 150 | $ 4.33 | ||
Description
General part information
SH150S-1.81-168
168 µH Unshielded Toroidal Inductor 1.81 A 180mOhm Nonstandard
