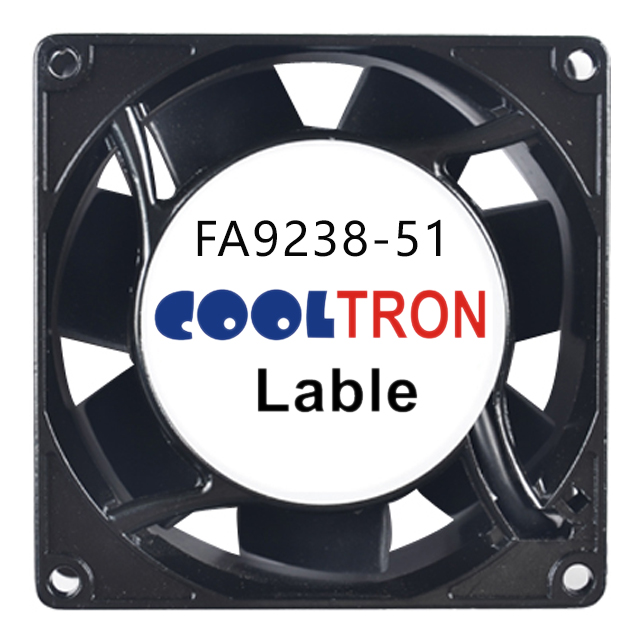

FA9238B22W7-51
ActiveCooltron Industrial Supply
AC AXIAL FANS 92X92X38MM 230VAC
Deep-Dive with AI
Search across all available documentation for this part.
FA9238B22W7-51
ActiveCooltron Industrial Supply
AC AXIAL FANS 92X92X38MM 230VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FA9238B22W7-51 |
|---|---|
| Air Flow [Max] | 1.37 m³/min |
| Air Flow [Max] | 49 CFM |
| Air Flow [Min] | 1.18 m³/min |
| Air Flow [Min] | 42 CFM |
| Approval Agency | cUL, UL, CE |
| Bearing Type | Ball |
| Current Rating (Amps) [Max] | 0.1 A |
| Current Rating (Amps) [Min] | 0.08 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 40 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 12 W, 15 W |
| RPM [Max] | 3200 RPM |
| RPM [Min] | 2800 RPM |
| Static Pressure [Max] | 69.7 Pa |
| Static Pressure [Max] | 0.28 in H2O |
| Static Pressure [Min] | 50.99 Pa |
| Static Pressure [Min] | 0.205 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Voltage Range [Max] | 240 VAC |
| Voltage Range [Min] | 220 VAC |
| Weight | 446 g |
| Weight | 0.983 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 2 | $ 26.00 | |
| 30 | $ 25.00 | |||
| 50 | $ 23.50 | |||
| 100 | $ 21.80 | |||
Description
General part information
FA9238B22W7-51
Fan Tubeaxial 230VAC Square - 92mm L x 92mm H Ball 42.0 ~ 49.0 CFM (1.18 ~ 1.37m³/min) 2 Wire Leads
Documents
Technical documentation and resources
No documents available
