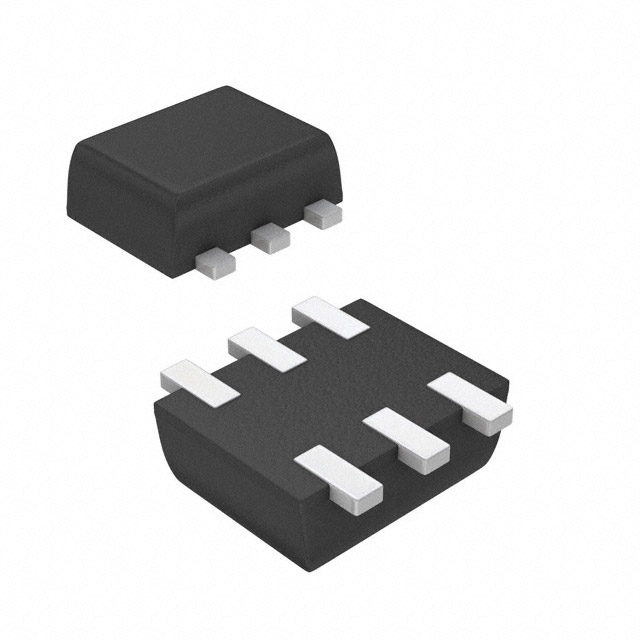

MP2141NGTF-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 1A SOT563
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP2141NGTF-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 1A SOT563
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP2141NGTF-P |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 2.2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SOT-666, SOT-563 |
| Supplier Device Package | SOT-563 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.3 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.40 | |
| 10 | $ 1.25 | |||
| 25 | $ 1.19 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.91 | |||
| Digi-Reel® | 1 | $ 1.40 | ||
| 10 | $ 1.25 | |||
| 25 | $ 1.19 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.91 | |||
| Tape & Reel (TR) | 500 | $ 0.81 | ||
| 1000 | $ 0.64 | |||
| 2500 | $ 0.59 | |||
| 5000 | $ 0.56 | |||
| 12500 | $ 0.54 | |||
Description
General part information
MP2141NGTF-P
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A SOT-563, SOT-666
