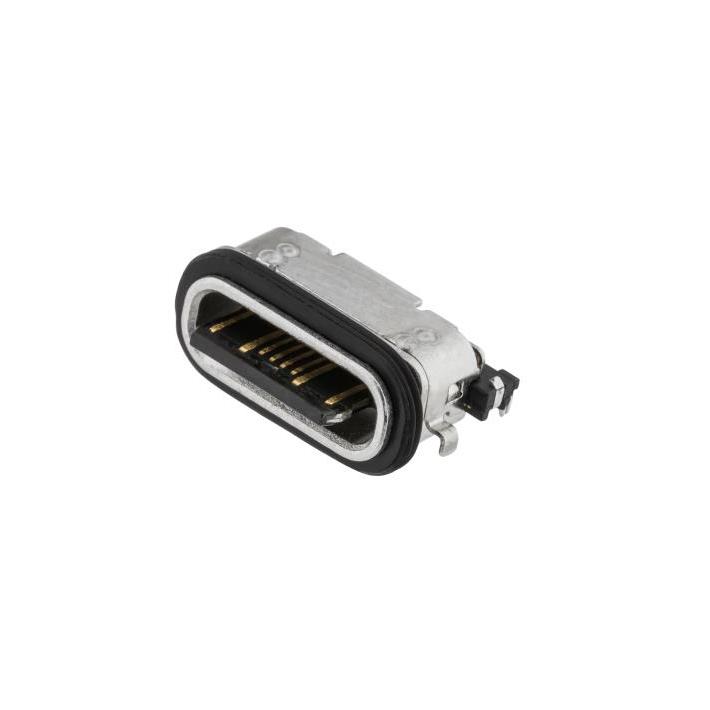

LWP-C101D-004-J-19
ActiveLinkplex
USB 2.0 TYPE C 16P IPX7
Deep-Dive with AI
Search across all available documentation for this part.
LWP-C101D-004-J-19
ActiveLinkplex
USB 2.0 TYPE C 16P IPX7
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LWP-C101D-004-J-19 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Tin, Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A, 5 A |
| Gender | Receptacle |
| Ingress Protection | IPX7 - Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.54 | |
| 10 | $ 3.48 | |||
| 25 | $ 3.13 | |||
| 50 | $ 2.90 | |||
| 100 | $ 2.69 | |||
| 250 | $ 2.44 | |||
| 500 | $ 2.27 | |||
| Digi-Reel® | 1 | $ 4.54 | ||
| 10 | $ 3.48 | |||
| 25 | $ 3.13 | |||
| 50 | $ 2.90 | |||
| 100 | $ 2.69 | |||
| 250 | $ 2.44 | |||
| 500 | $ 2.27 | |||
| Tape & Reel (TR) | 1000 | $ 2.12 | ||
| 2000 | $ 1.98 | |||
| 3000 | $ 1.91 | |||
| 5000 | $ 1.85 | |||
Description
General part information
LWP-C101D-004-J-19
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
