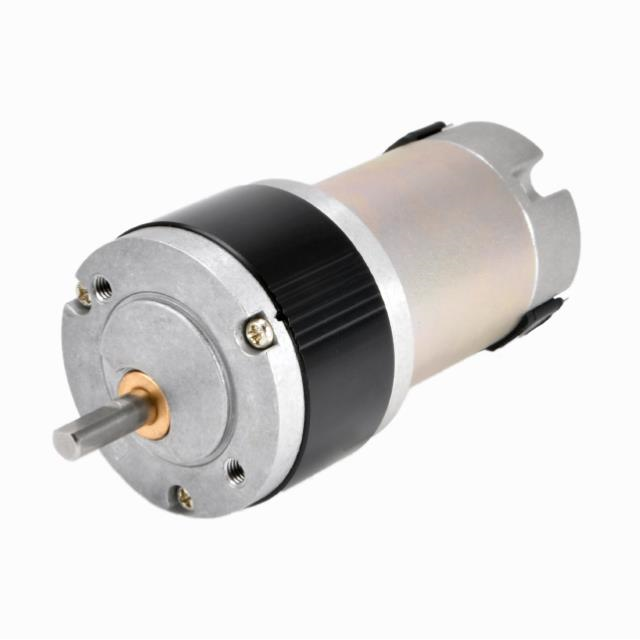

GEARMOTOR 24V 20 RPM 50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DCM-1034
ActiveMulti Products Company, Inc.
GEARMOTOR 24V 20 RPM 50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DCM-1034 |
|---|---|
| Diameter - Shaft [diameter] | 6.33 mm |
| Diameter - Shaft [diameter] | 0.249 in |
| Length - Shaft and Bearing [x] | 19.05 mm |
| Length - Shaft and Bearing [x] | 0.75 in |
| Mounting Hole Spacing | 38 mm |
| Mounting Hole Spacing | 1.496 in |
| RPM | 20 RPM |
| Size / Dimension [diameter] | 40 mm |
| Size / Dimension [diameter] | 1.575 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 2.63 mNm |
| Torque - Rated (oz-in / mNm) | 0.38 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 55.00 | |
Description
General part information
DCM-1034
DC Motor Gearmotor 20 RPM 24VDC
