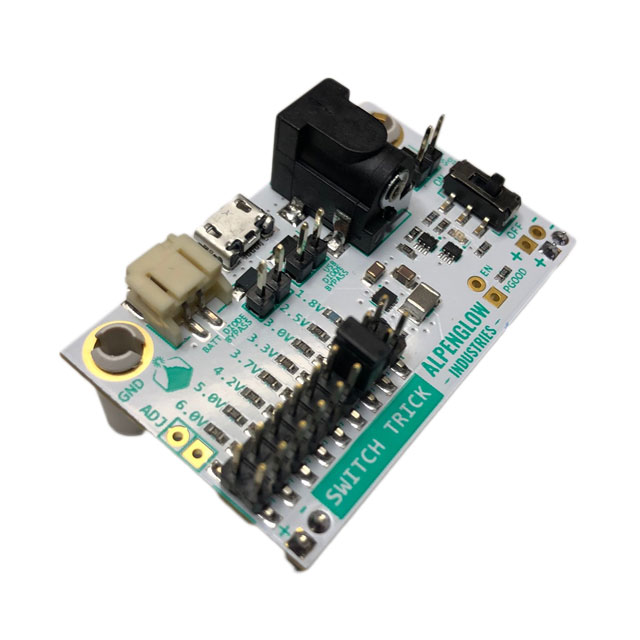

SWT-0001
ActiveAlpenglow Industries
BREADBOARD ADJU VOUT BUCK SUPPLY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SWT-0001
ActiveAlpenglow Industries
BREADBOARD ADJU VOUT BUCK SUPPLY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SWT-0001 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 1 A |
| Frequency - Switching | 2.25 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TPS62160 |
| Voltage - Input [Max] | 17 V |
| Voltage - Input [Min] | 3 V |
| Voltage - Output [Max] | 6 VDC |
| Voltage - Output [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.95 | |
Description
General part information
SWT-0001
TPS62160 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
