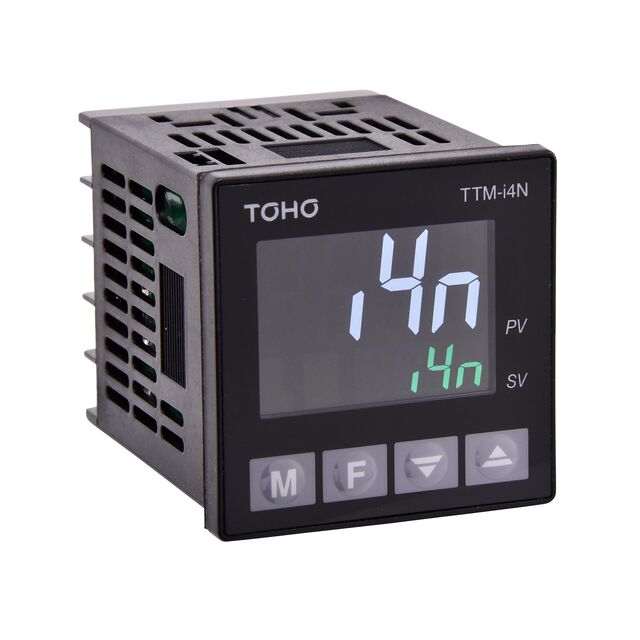

TTM-I4N-R-AB
ActiveTOHO ELECTRONICS INC.
CONTROL TEMP/PROCESS 100-240V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TTM-I4N-R-AB
ActiveTOHO ELECTRONICS INC.
CONTROL TEMP/PROCESS 100-240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TTM-I4N-R-AB |
|---|---|
| Control Method | On/Off, Proportional (PID) |
| Display Type | LCD - Dual Color Characters |
| Input Range [Max] | 1800 °C |
| Input Range [Min] | -328 °F |
| Number of Characters Per Row | 4 |
| Number of Characters Per Row | 4 |
| Output Type | Relay (3) |
| Panel Cutout Dimensions [x] | 45 mm |
| Panel Cutout Dimensions [y] | 45 mm |
| Termination Style | Screw Terminal |
| Type | Temperature Controller (RTD, Type B, J, K, N, R, S, T) |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 115.00 | |
| 2 | $ 89.00 | |||
| 10 | $ 79.00 | |||
Description
General part information
TTM-I4N-R-AB
Temperature Controller (RTD, Type B, J, K, N, R, S, T) 100 ~ 240VAC Panel Mount
Documents
Technical documentation and resources
