FVTS05R2E100R0JE
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 100 OHM 5% 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FVTS05R2E100R0JE
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 100 OHM 5% 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FVTS05R2E100R0JE |
|---|---|
| Coating, Housing Type | Vitreous Enamel Coated |
| Composition | Wirewound |
| Lead Style | Combo Leads |
| Mounting Feature | Brackets (not included) |
| Operating Temperature [Max] | 350 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Tubular |
| Power (Watts) | 5 W |
| Resistance | 100 Ohms |
| Size / Dimension [diameter] | 7.94 mm |
| Size / Dimension [diameter] | 0.313 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Temperature Coefficient | 260 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.58 | |
| 10 | $ 3.93 | |||
| 25 | $ 3.79 | |||
| 50 | $ 3.52 | |||
| 100 | $ 3.10 | |||
Description
General part information
FVTS05R2E100R0JE

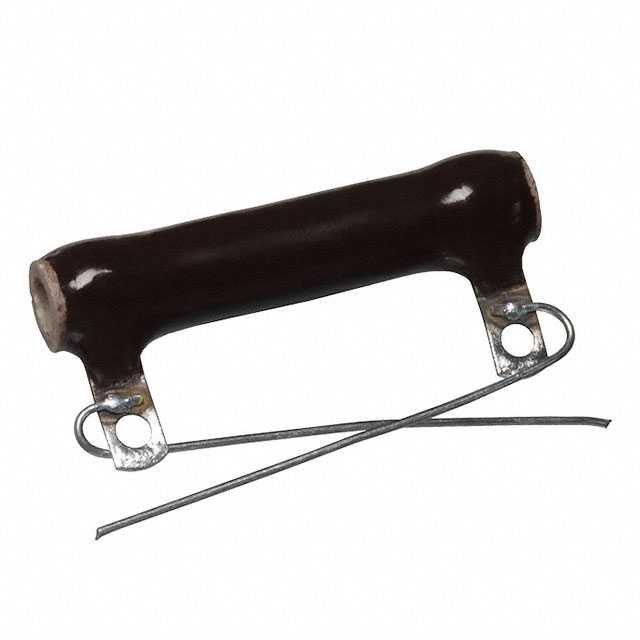

100 Ohms ±5% 5W Wirewound Chassis Mount Resistor
