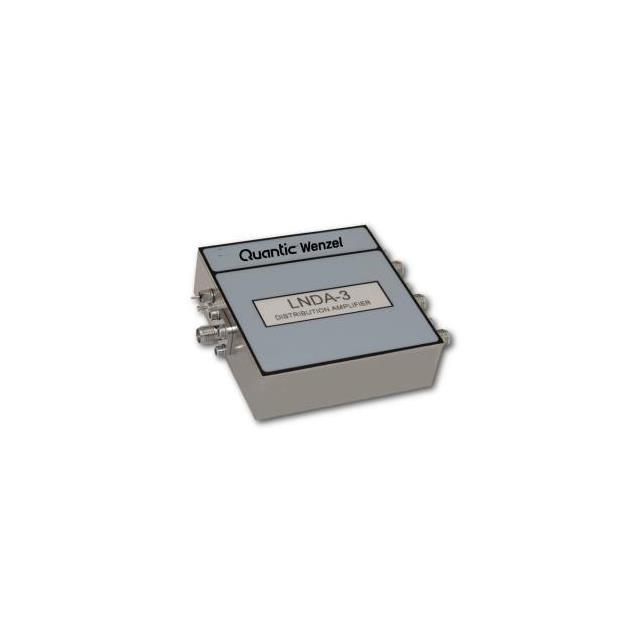

601-33946
ActiveQuantic Wenzel
HF LOW NOISE DIST AMPLIFER - 3 W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
601-33946
ActiveQuantic Wenzel
HF LOW NOISE DIST AMPLIFER - 3 W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 601-33946 |
|---|---|
| Frequency [Max] | 10 MHz |
| Frequency [Min] | 10 MHz |
| Package / Case | Module, SMA Connectors |
| Size / Dimension [x] | 2.55 " |
| Size / Dimension [x] | 64.77 mm |
| Size / Dimension [y] | 64.77 mm |
| Size / Dimension [y] | 2.55 " |
| Size / Dimension [z] | 20.32 mm |
| Size / Dimension [z] | 0.8 " |
| Specifications | 50 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
601-33946
RF Power Divider 10 MHz ~ 10 MHz Isolation (Typ) 50dB Module, SMA Connectors
