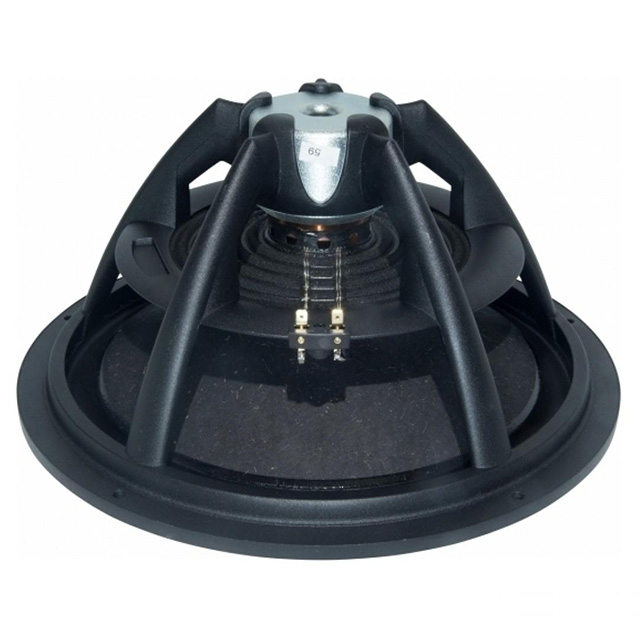

NE315W-04
ObsoletePeerless by Tymphany
SPEAKER 3.55OHM 150W TOP PT 85DB
Deep-Dive with AI
Search across all available documentation for this part.
NE315W-04
ObsoletePeerless by Tymphany
SPEAKER 3.55OHM 150W TOP PT 85DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NE315W-04 |
|---|---|
| Efficiency - dBA | 85 dBA |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 19.94 Hz |
| Frequency Range [Max] | 1 kHz |
| Frequency Range [Min] | 25 Hz |
| Height - Seated (Max) [Max] | 157.3 mm |
| Height - Seated (Max) [Max] | 6.193 " |
| Impedance | 3.55 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Rated | 150 W |
| Shape | Round |
| Size / Dimension [diameter] | 314.2 mm |
| Size / Dimension [diameter] | 12.37 in |
| Technology | Magnetic |
| Termination | Terminal Block |
| Type | Subwoofer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NE315W-04
3.55 Ohms Subwoofer Speaker 150 W 25 Hz ~ 1 kHz Top Round
Documents
Technical documentation and resources
No documents available
