TGL41-24CA
ActiveDiotec Semiconductor
TVS DIODE 20.5VWM 33.2V DO213AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TGL41-24CA
ActiveDiotec Semiconductor
TVS DIODE 20.5VWM 33.2V DO213AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TGL41-24CA |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 12.6 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |

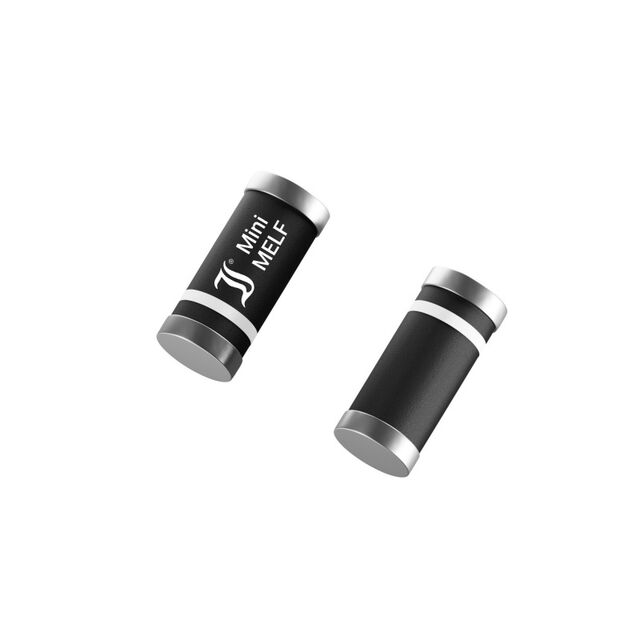

| Package / Case | DO-213AB, MELF |
| Power - Peak Pulse | 400 W |
| Power Line Protection | False |
| Supplier Device Package | DO-213AB (MELF) |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 22.8 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 33.2 V |
| Voltage - Reverse Standoff (Typ) | 20.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5000 | $ 0.07 | |
Description
General part information
TGL41-24CA
33.2V Clamp 12.6A Ipp Tvs Diode Surface Mount DO-213AB (MELF)
