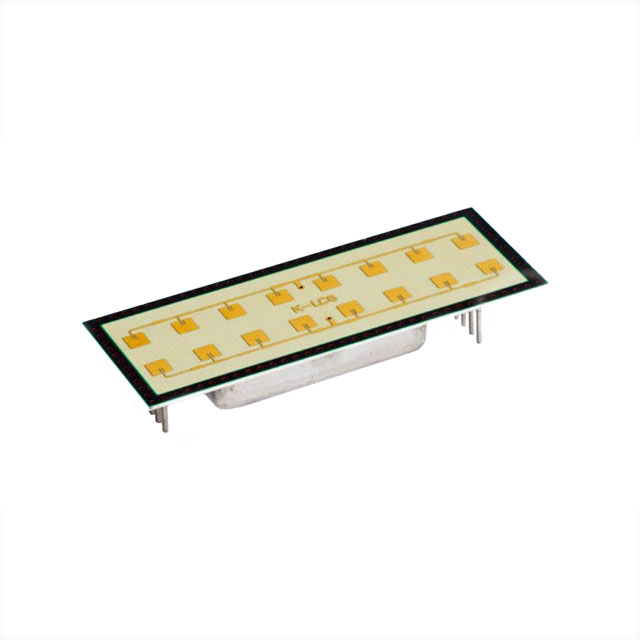

K-LC6-RFB-00D
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K-LC6-RFB-00D
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K-LC6-RFB-00D |
|---|---|
| Antenna Type | Integrated, Ceramic Patch |
| Current - Receiving | 85 mA |
| Current - Transmitting | 85 mA |
| Frequency [Max] | 24.25 GHz |
| Frequency [Min] | 24.05 GHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 8-DIP Module |
| RF Family/Standard | Radar |
| Sensitivity | -126 dBm |
| Voltage - Supply [Max] | 5.2 V |
| Voltage - Supply [Min] | 4.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 59.32 | |
| 10 | $ 49.95 | |||
| 25 | $ 46.83 | |||
| 100 | $ 45.27 | |||
Description
General part information
K-LC6-RFB-00D
Radar Transceiver Module 24.05GHz ~ 24.25GHz Integrated, Ceramic Patch Through Hole
