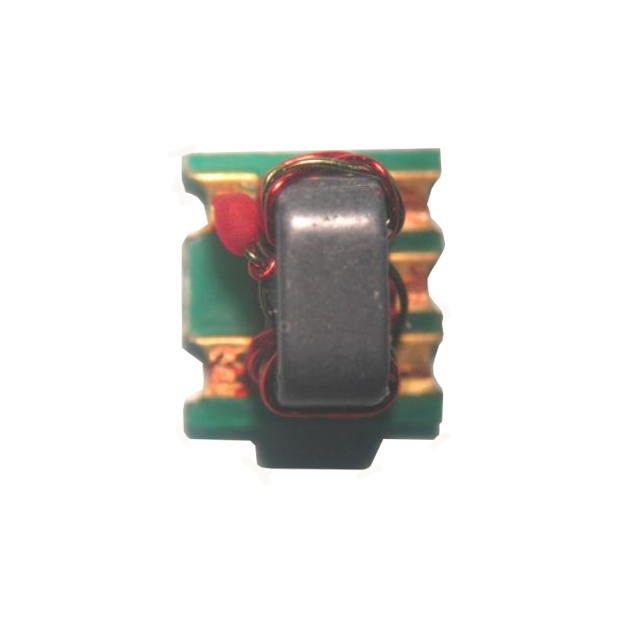

MABA-010247-2R1250
ActiveMACOM Technology Solutions
E-SERIES BALUN 1:2 1-1600MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MABA-010247-2R1250
ActiveMACOM Technology Solutions
E-SERIES BALUN 1:2 1-1600MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MABA-010247-2R1250 |
|---|---|
| Frequency Range [Max] | 1600 MHz |
| Frequency Range [Min] | 1 MHz |
| Impedance - Unbalanced/Balanced | 1:2 |
| Insertion Loss (Max) | 4 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Phase Difference | 5 ° |
| Return Loss (Min) [Min] | 10 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.51 | |
| 10 | $ 2.85 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.16 | |||
| 100 | $ 2.06 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.94 | |||
| 1000 | $ 1.88 | |||
| Digi-Reel® | 1 | $ 3.51 | ||
| 10 | $ 2.85 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.16 | |||
| 100 | $ 2.06 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.94 | |||
| 1000 | $ 1.88 | |||
| Tape & Reel (TR) | 2000 | $ 1.88 | ||
Description
General part information
MABA-010247-2R1250
RF Balun 1MHz ~ 1.6GHz 1:2 6-SMD (5 Leads), Flat Lead
