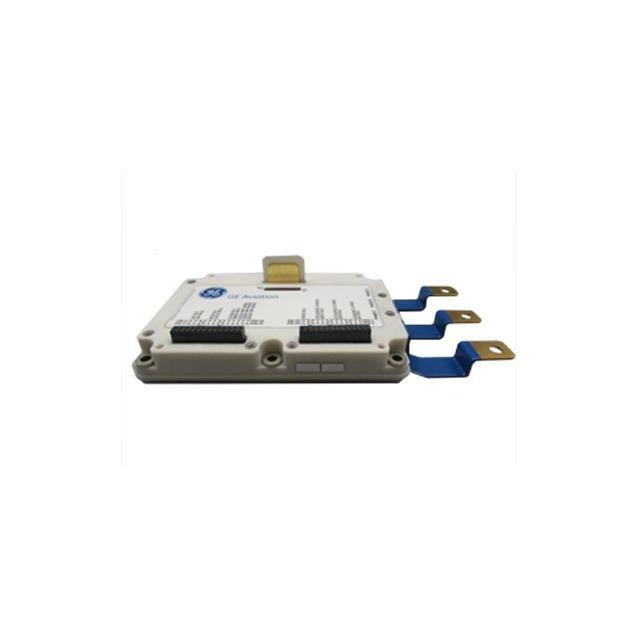

GE17045EEA3
ActiveGE Aerospace
SIC 6N-CH 1700V 425A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GE17045EEA3 |
|---|---|
| Configuration | 6 N-Channel (3-Phase Bridge) |
| Current - Continuous Drain (Id) @ 25°C | 425 A |
| Drain to Source Voltage (Vdss) | 1.7 kV |
| Drain to Source Voltage (Vdss) | 1700 V |
| Gate Charge (Qg) (Max) @ Vgs | 1207 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 29100 pF |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Module |
| Rds On (Max) @ Id, Vgs | 4.45 mOhm |
| Technology | Silicon Carbide (SiC) |
| Vgs(th) (Max) @ Id | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3795.00 | |
| 10 | $ 3575.00 | |||
Description
General part information
GE17045EEA3
Mosfet Array 1700V (1.7kV) 425A (Tc) 1250W (Tc) Chassis Mount
