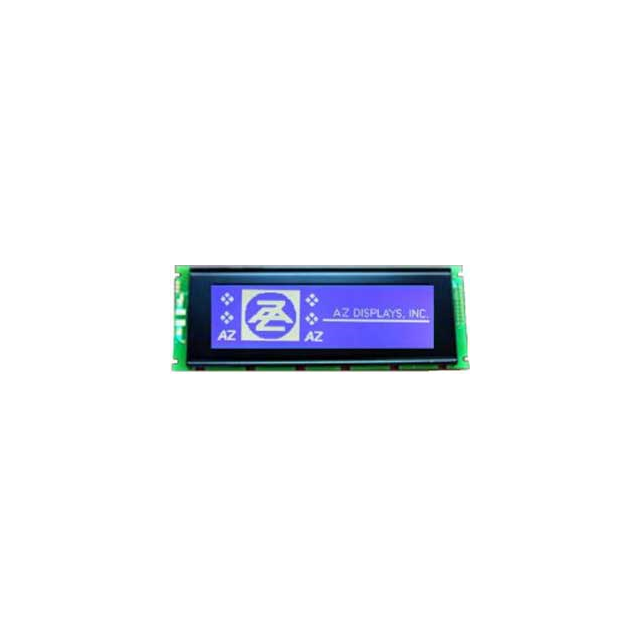

AQM1696A-FLW-FBH
ActiveAZ Displays
160X96 GRAPHIC LCD TRANSFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AQM1696A-FLW-FBH
ActiveAZ Displays
160X96 GRAPHIC LCD TRANSFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AQM1696A-FLW-FBH |
|---|---|
| Backlight | LED - White |
| Controller Type | ST7528 |
| Display Mode | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Pixels [x] | 160 |
| Dot Pixels [y] | 96 |
| Dot Size [y] | 0.4 mm |
| Dot Size [z] | 0.38 mm |
| Viewing Area [x] | 74.31 mm |
| Viewing Area [y] | 44.87 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AQM1696A-FLW-FBH
Graphic LCD Display Module Transflective FSTN - Film Super-Twisted Nematic 160 x 96
Documents
Technical documentation and resources
