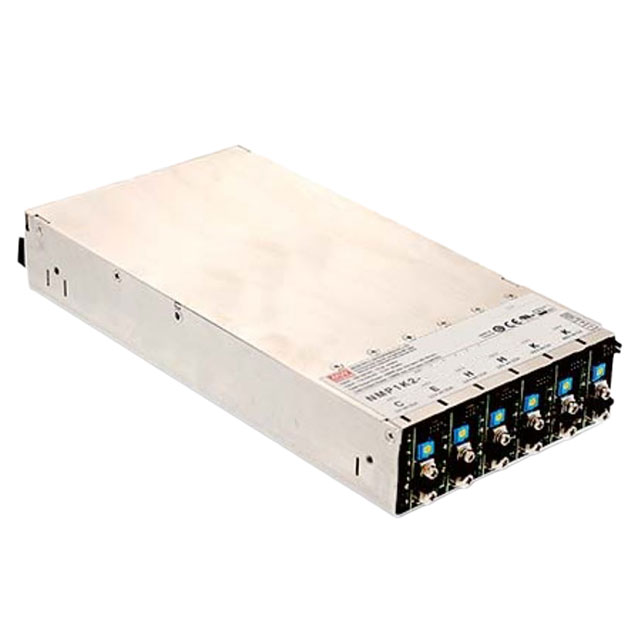

NMP1K2-HEEKEE-02
ActiveMEAN WELL USA Inc.
AC/DC CNVT 24V 12V 48V 2X12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMP1K2-HEEKEE-02
ActiveMEAN WELL USA Inc.
AC/DC CNVT 24V 12V 48V 2X12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NMP1K2-HEEKEE-02 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, EAC, CE, CB |
| Current - Output 1 | 10 A |
| Current - Output 2 | 40 A |
| Current - Output 3 | 5 A |
| Current - Output 5 | 20 A |
| Efficiency | 88.5 % |
| Features | Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 5 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 1200 W |
| Size / Dimension [x] | 9.84 " |
| Size / Dimension [x] | 250 mm |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 41 mm |
| Size / Dimension [z] | 1.61 " |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | 48 V |
| Voltage - Output 4 | 12 V |
| Voltage - Output 5 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 799.19 | |
Description
General part information
NMP1K2-HEEKEE-02
Enclosed AC DC Converters 5 Output 24V 12V 48V 12V 90 ~ 264 VAC, 120 ~ 370 VDC Input
