CPEX4141L-680MC
ActiveCODACA
THT HIGH CURRENT POWER INDUCTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CPEX4141L-680MC
ActiveCODACA
THT HIGH CURRENT POWER INDUCTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CPEX4141L-680MC |
|---|---|
| Current - Saturation (Isat) | 37 A |
| Current Rating (Amps) | 43 A |
| DC Resistance (DCR) [Max] | 3.82 mOhm |
| Features | Low Loss, Soft Saturation |
| Height - Seated (Max) [Max] [z] | 39 mm |
| Height - Seated (Max) [Max] [z] | 1.535 in |
| Inductance | 68 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Vertical, 2 PC Pin |
| Shielding | Shielded |
| Size / Dimension [x] | 41.5 mm |
| Size / Dimension [x] | 1.635 in |
| Size / Dimension [y] | 1.614 in |
| Size / Dimension [y] | 41 mm |
| Supplier Device Package | Vertical, 2 PC Pin |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 38.72 | |
| 10 | $ 29.98 | |||
| 25 | $ 27.05 | |||
| 40 | $ 25.66 | |||
| 80 | $ 25.25 | |||
Description
General part information
CPEX4141L-680MC

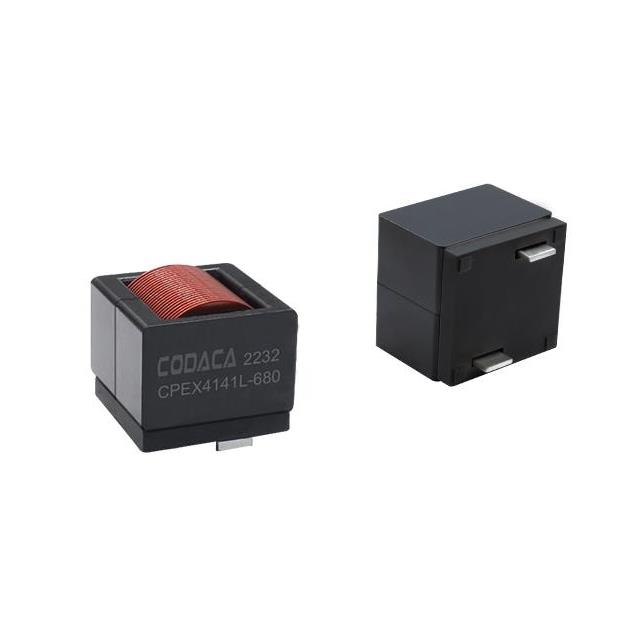

68 µH Shielded Wirewound Inductor 43 A 3.82mOhm Max Vertical, 2 PC Pin Low Loss, Soft Saturation
