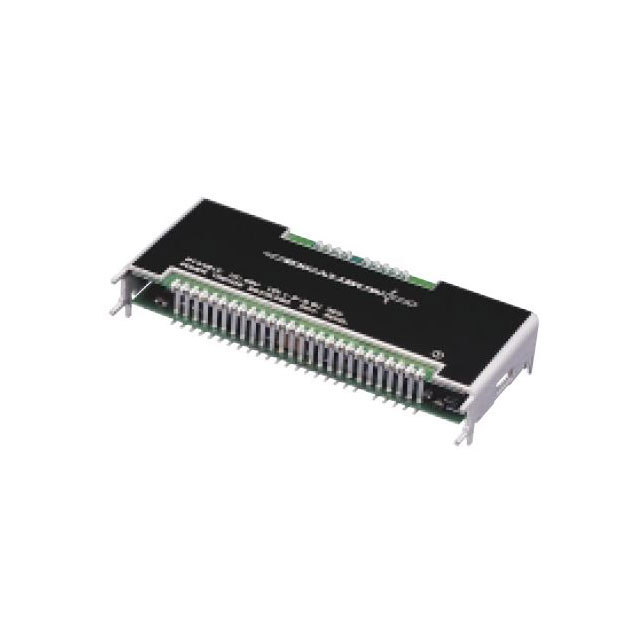

PT4484N
ObsoletePower Trends
DC DC CONVERTER 4.6-5.7V 100W
Deep-Dive with AI
Search across all available documentation for this part.
PT4484N
ObsoletePower Trends
DC DC CONVERTER 4.6-5.7V 100W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT4484N |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 90 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 26-SIP Module |
| Power (Watts) | 100 W |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 [Max] | 5.7 V |
| Voltage - Output 1 [Min] | 4.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 3 | $ 140.15 | |
Description
General part information
PT4484N
Isolated Module DC DC Converter 1 Output 4.6 ~ 5.7V 20A 36V - 75V Input
Documents
Technical documentation and resources
No documents available
