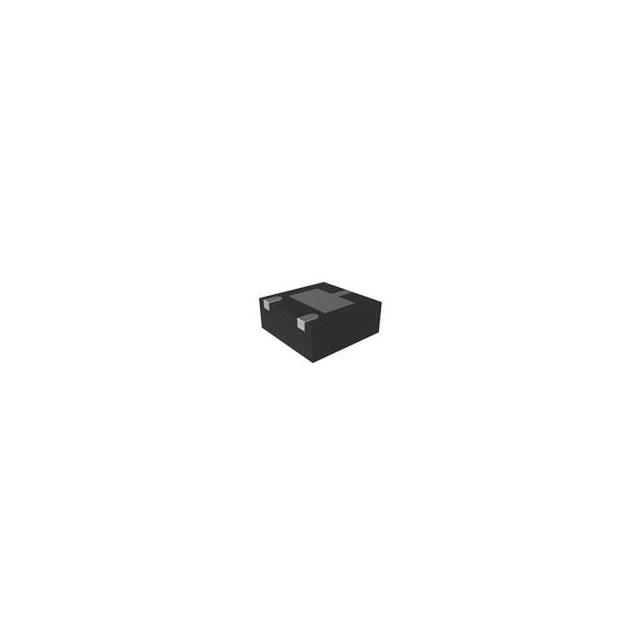

MCP718-TP
ObsoleteMicro Commercial Components
TRANS PNP 20V 6A DFN2020-3
Deep-Dive with AI
Search across all available documentation for this part.
MCP718-TP
ObsoleteMicro Commercial Components
TRANS PNP 20V 6A DFN2020-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MCP718-TP |
|---|---|
| Current - Collector Cutoff (Max) [Max] | 25 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 300 |
| Frequency - Transition | 150 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3-VDFN Exposed Pad |
| Power - Max [Max] | 1 W |
| Supplier Device Package | DFN2020-3 |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic [Max] | 350 mV |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MCP718-TP
Bipolar (BJT) Transistor PNP 20 V 6 A 150MHz 1 W Surface Mount DFN2020-3
Documents
Technical documentation and resources
No documents available
