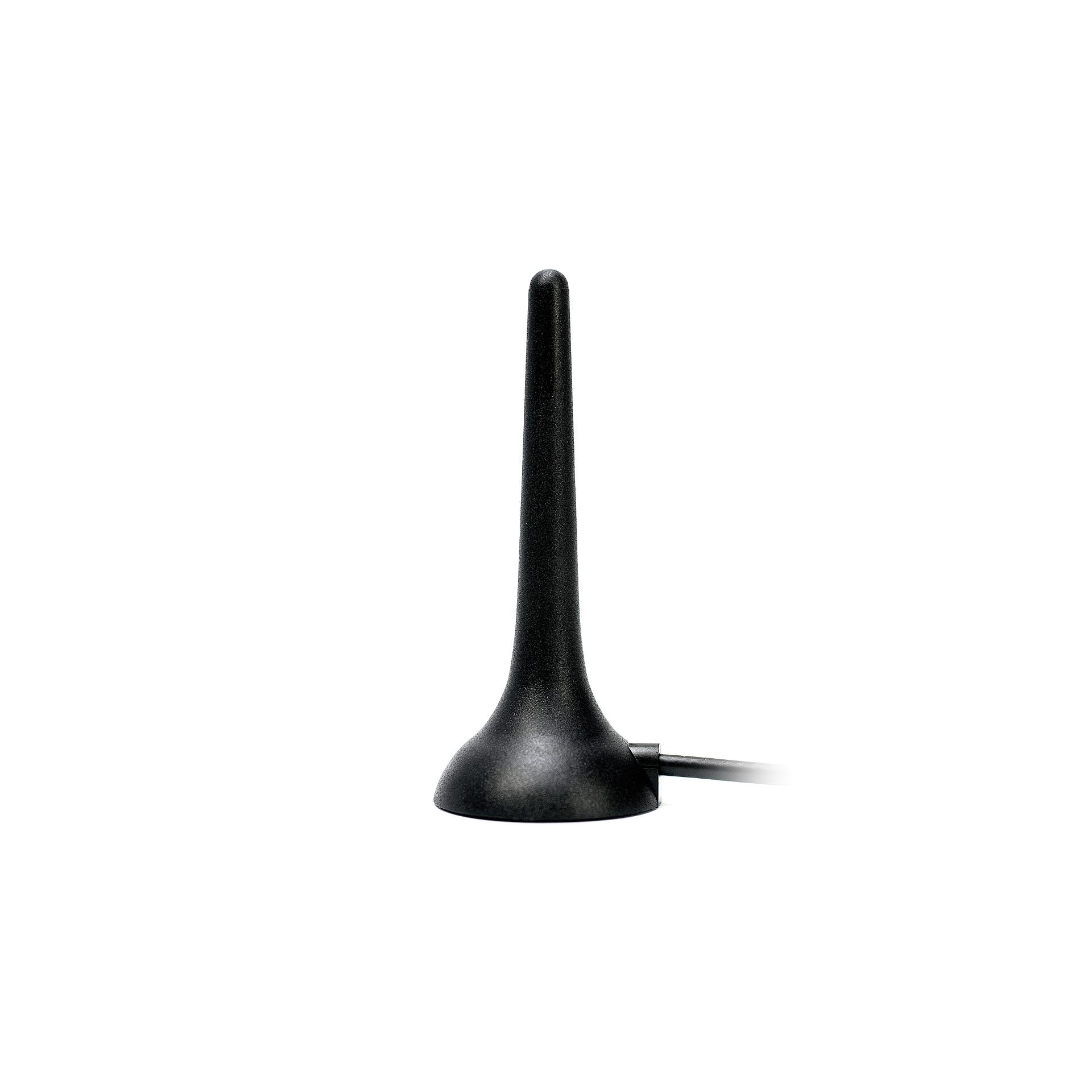

2J3715M-868
Active2J Antennas
POINTER 868/SIGFOX/LORA/LPWA/RFI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2J3715M-868
Active2J Antennas
POINTER 868/SIGFOX/LORA/LPWA/RFI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2J3715M-868 |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Sigfox, ISM, LoRa, Zigbee™ |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 866.5 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 870 MHz |
| Frequency Range [Min] | 863 MHz |
| Gain | 1.7 dBi |
| Height (Max) | 71.5 mm |
| Height (Max) [Max] | 2.815 in |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| Power - Max [Max] | 25 W |
| Return Loss | -16.4 dB |
| RF Family/Standard | General ISM, 802.15.4 |
| VSWR | 1.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.55 | |
| 10 | $ 11.31 | |||
| 25 | $ 10.36 | |||
| 100 | $ 9.20 | |||
| 250 | $ 8.60 | |||
| 500 | $ 8.21 | |||
| 1000 | $ 7.87 | |||
Description
General part information
2J3715M-868
RF ANTENNA ISM, LoRa, Sigfox, Zigbee™ Whip, Straight SMA Male Magnetic
