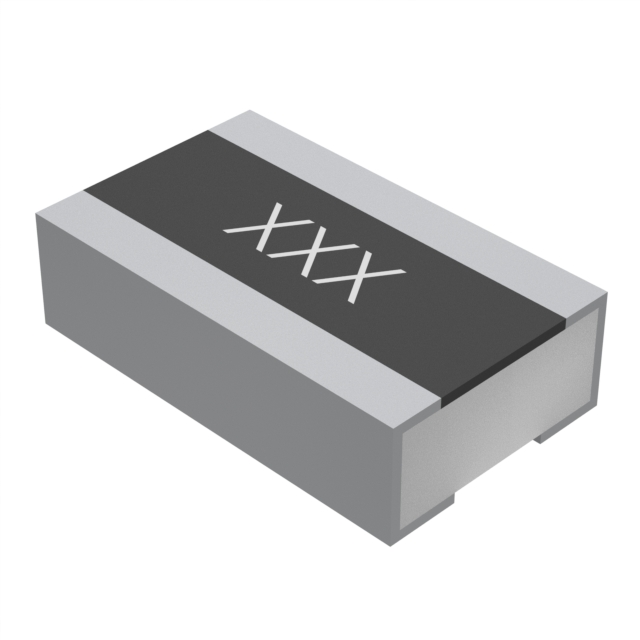

LTR10EZPJ562
ActiveRohm Semiconductor
RES 5.6K OHM 5% 1/4W 0805 WIDE
Deep-Dive with AI
Search across all available documentation for this part.
LTR10EZPJ562
ActiveRohm Semiconductor
RES 5.6K OHM 5% 1/4W 0805 WIDE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTR10EZPJ562 |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Wide 0805 (2012 Metric), 0508 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Ratings | AEC-Q200 |
| Resistance | 5.6 kOhms |
| Size / Dimension [x] | 1.2 mm |
| Size / Dimension [x] | 0.047 in |
| Size / Dimension [y] | 0.079 in |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | 0805 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.20 | |
| 10 | $ 0.10 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.20 | ||
| 10 | $ 0.10 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 5000 | $ 0.02 | ||
| 10000 | $ 0.02 | |||
| 25000 | $ 0.02 | |||
Description
General part information
LTR10EZPJ562
5.6 kOhms ±5% 0.25W, 1/4W Chip Resistor Wide 0805 (2012 Metric), 0508 Automotive AEC-Q200, Pulse Withstanding Thick Film
