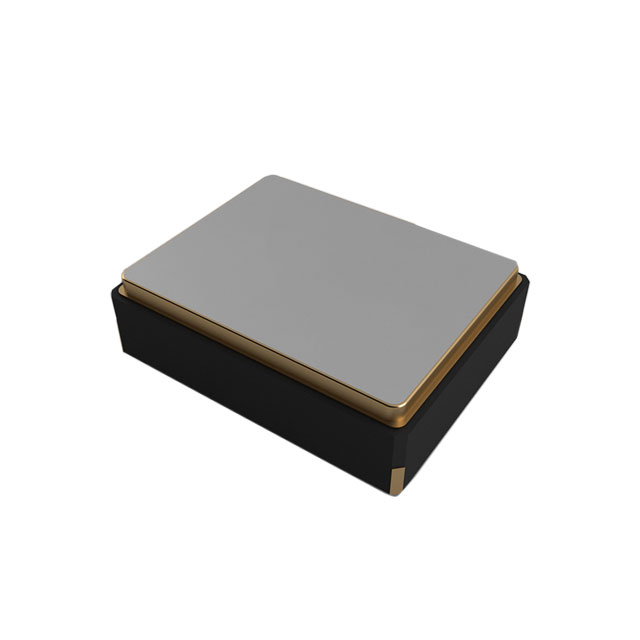

ISM95-6251AH-25.000MHZ
ActiveILSI
OSC XO 25MHZ 2.5V CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISM95-6251AH-25.000MHZ
ActiveILSI
OSC XO 25MHZ 2.5V CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISM95-6251AH-25.000MHZ |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 20 mA |
| Frequency | 25 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.02 | |
| Tape & Reel (TR) | 1000 | $ 0.66 | ||
| 2000 | $ 0.63 | |||
| 3000 | $ 0.61 | |||
Description
General part information
ISM95-6251AH-25.000MHZ
25 MHz XO (Standard) CMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
