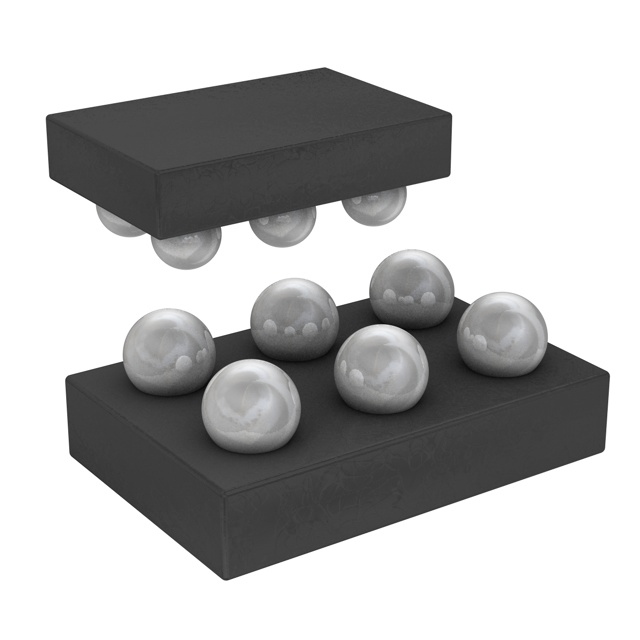

TCK402G,LF
ActiveToshiba Semiconductor and Storage
IC GATE DRVR LOW-SIDE 6WCSPE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCK402G,LF
ActiveToshiba Semiconductor and Storage
IC GATE DRVR LOW-SIDE 6WCSPE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCK402G,LF |
|---|---|
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Input Type | Non-Inverting |
| Logic Voltage - VIL, VIH [custom] | 1.6 V |
| Logic Voltage - VIL, VIH [custom] | 0.4 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-UFBGA, WLCSP |
| Rise / Fall Time (Typ) [custom] | 1.5 µs |
| Rise / Fall Time (Typ) [custom] | 0.2 ms |
| Supplier Device Package | 6-WCSPE (0.80x1.2) |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.55 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.29 | |||
| 2500 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 1.09 | ||
| 10 | $ 0.66 | |||
| 25 | $ 0.55 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.29 | |||
| 2500 | $ 0.26 | |||
| Tape & Reel (TR) | 5000 | $ 0.23 | ||
| 10000 | $ 0.22 | |||
| 15000 | $ 0.21 | |||
| 25000 | $ 0.20 | |||
Description
General part information
TCK402G,LF
Low-Side Gate Driver IC Non-Inverting 6-WCSPE (0.80x1.2)
