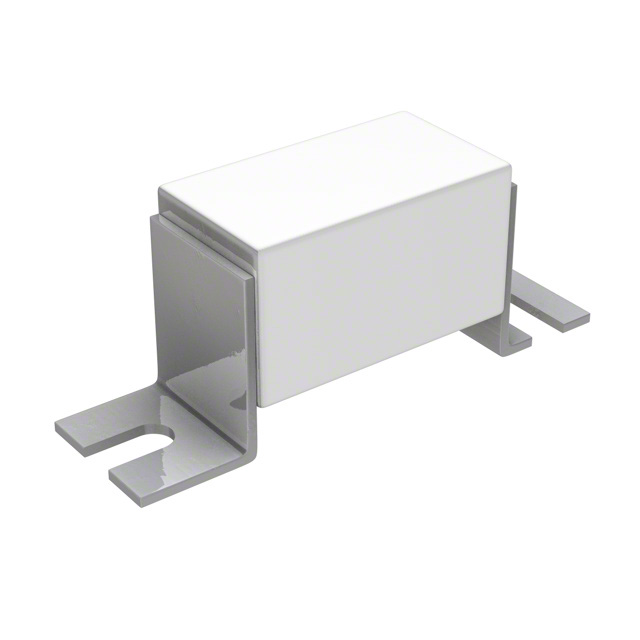

170M1316
ActiveEaton - Bussmann Electrical Division
FUSE SQUARE 80A 700VAC RECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
170M1316
ActiveEaton - Bussmann Electrical Division
FUSE SQUARE 80A 700VAC RECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 170M1316 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CSA, UR, CE |
| Breaking Capacity @ Rated Voltage | 200 kA |
| Current Rating (Amps) | 80 A |
| Melting I²t | 380 |
| Mounting Type | Bolt Mount |
| Package / Case | Rectangular, Blade |
| Size / Dimension [x] | 2.126 in |
| Size / Dimension [x] | 54 mm |
| Size / Dimension [y] | 21 mm |
| Size / Dimension [y] | 0.827 in |
| Size / Dimension [z] | 1.575 in |
| Size / Dimension [z] | 40 mm |
| Voltage Rating - AC | 700 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 126.43 | |
Description
General part information
170M1316
80A 700 VAC Fuse Square Bolt Mount
