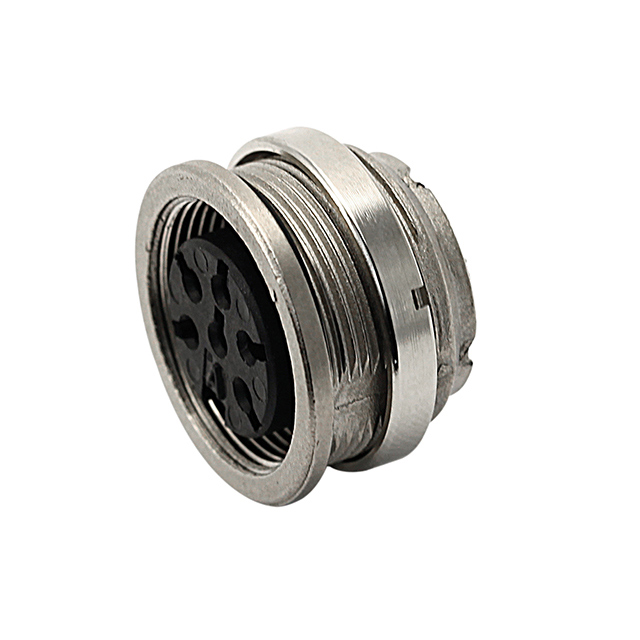

T 3403 550
ActiveAmphenol Tuchel Industrial
CONN RCPT HSNG FMALE 6POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
T 3403 550
ActiveAmphenol Tuchel Industrial
CONN RCPT HSNG FMALE 6POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3403 550 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 1.5 mm |
| Contact Type | Crimp |
| Housing Color | Silver |
| Ingress Protection | IP40 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-6 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.01 | |
| 10 | $ 4.53 | |||
| 25 | $ 4.28 | |||
| 50 | $ 4.17 | |||
| 100 | $ 3.97 | |||
| 300 | $ 3.67 | |||
Description
General part information
T 3403 550
6 Position Circular Connector Receptacle Housing Panel Mount
