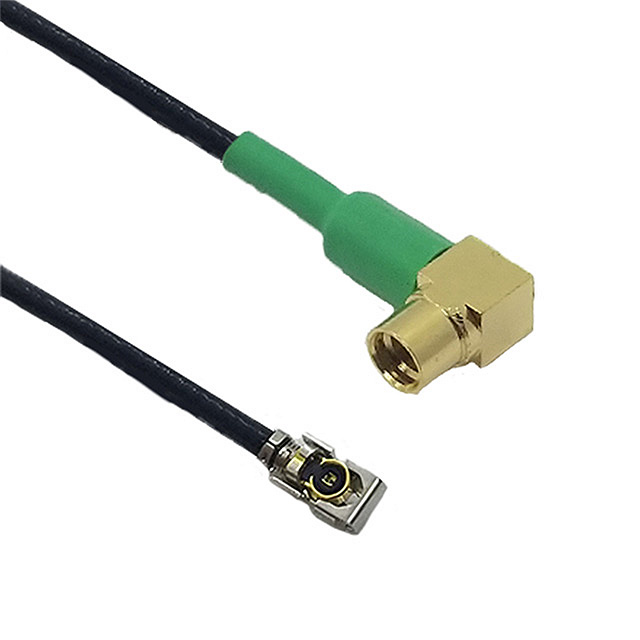

CB1.37-IPX4LLK-MCLFGT-12IN
ActiveLighthorse Technologies, Inc
CBL ASSY MHF4L LK-MMCX J-P 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CB1.37-IPX4LLK-MCLFGT-12IN
ActiveLighthorse Technologies, Inc
CBL ASSY MHF4L LK-MMCX J-P 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CB1.37-IPX4LLK-MCLFGT-12IN |
|---|---|
| 1st Connector | MMCX Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | IPEX MHF4L LK (Locking) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Features | Locking |
| Frequency - Max [Max] | 6000 MHz |
| Length | 12 " |
| Length | 304.8 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF4L LK to MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.14 | |
| 10 | $ 14.25 | |||
| 25 | $ 13.46 | |||
| 50 | $ 12.75 | |||
| 100 | $ 12.11 | |||
| 250 | $ 11.01 | |||
| 500 | $ 10.09 | |||
| 1000 | $ 9.32 | |||
Description
General part information
CB1.37-IPX4LLK-MCLFGT-12IN
Cable Assembly Coaxial IPEX MHF4L LK to MMCX 1.37mm OD Coaxial Cable 12.00" (304.80mm)
