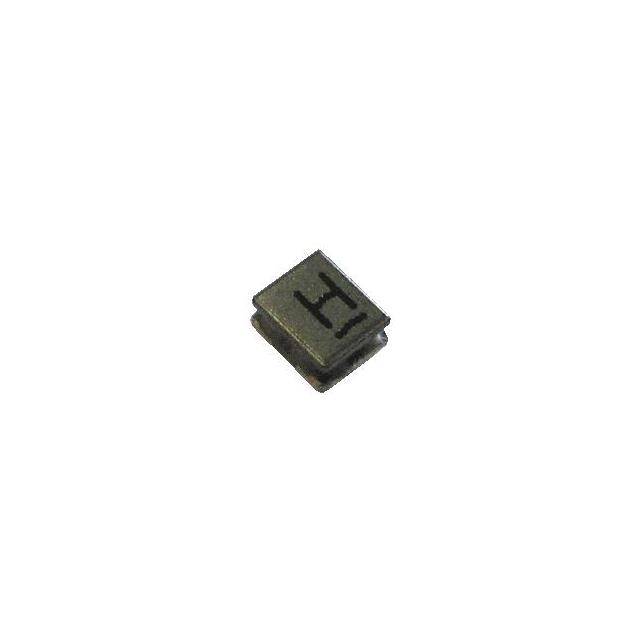

CTLV2510SF-1R0M
ActiveCentral Technologies
1.0UH SMD POWER INDUCTOR
Deep-Dive with AI
Search across all available documentation for this part.
CTLV2510SF-1R0M
ActiveCentral Technologies
1.0UH SMD POWER INDUCTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CTLV2510SF-1R0M |
|---|---|
| Current Rating (Amps) | 1.78 A |
| DC Resistance (DCR) | 66 mOhm |
| Height - Seated (Max) [Max] | 1.02 mm |
| Height - Seated (Max) [Max] [z] | 0.04 " |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1008 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Supplier Device Package | 1008 |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.47 | |
| 500 | $ 0.38 | |||
| 1000 | $ 0.29 | |||
Description
General part information
CTLV2510SF-1R0M
1 µH Shielded Inductor 1.78 A 66mOhm 1008 (2520 Metric)
Documents
Technical documentation and resources
No documents available
