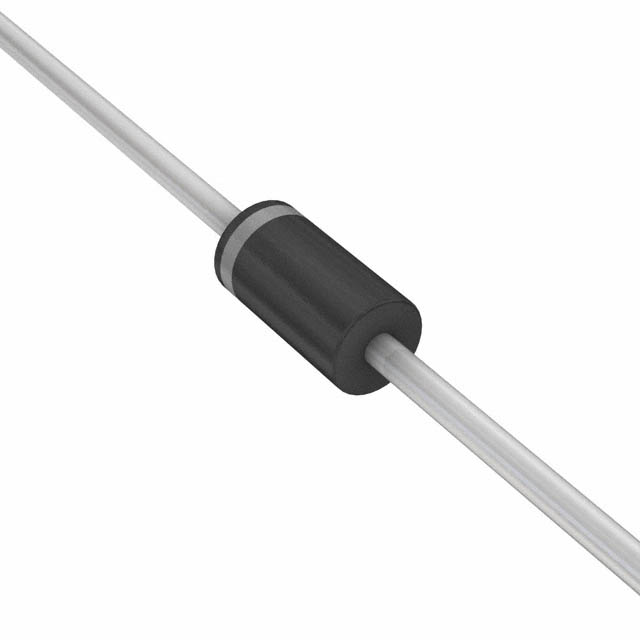

1N5232B
ObsoleteSMC Diode Solutions
DIODE ZENER 5.6V 500MW DO35
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N5232B
ObsoleteSMC Diode Solutions
DIODE ZENER 5.6V 500MW DO35
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5232B |
|---|---|
| Current - Reverse Leakage @ Vr | 5 µA |
| Impedance (Max) (Zzt) [Max] | 11 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature | 200 °C |
| Package / Case | Axial, DO-35, DO-204AH |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | DO-35 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.14 | |
| 10 | $ 0.09 | |||
| 100 | $ 0.05 | |||
| 500 | $ 0.04 | |||
| 511 | $ 1.62 | |||
| 1000 | $ 0.03 | |||
| 2000 | $ 0.03 | |||
| 5000 | $ 0.03 | |||
| 10000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
Description
General part information
1N5232B
Zener Diode 5.6 V 500 mW ±5% Through Hole DO-35
