8859850C087
ActiveEase Electronics

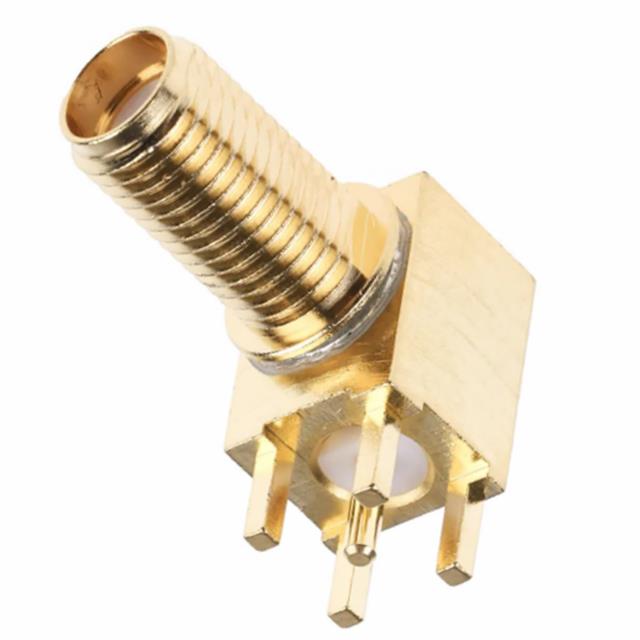

CONN SMA JACK 50 OHM RA PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8859850C087
ActiveEase Electronics
CONN SMA JACK 50 OHM RA PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8859850C087 |
|---|---|
| Body Finish | Nickel, Gold |
| Body Material | Brass |
| Cable Group | 316, 240, RG-58, 195, LMR100, 142, 178, 200 |
| Center Contact Material | Gold |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 477.50 | |
| 10 | $ 376.43 | |||
| 25 | $ 344.62 | |||
Description
General part information
8859850C087
SMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
Documents
Technical documentation and resources
