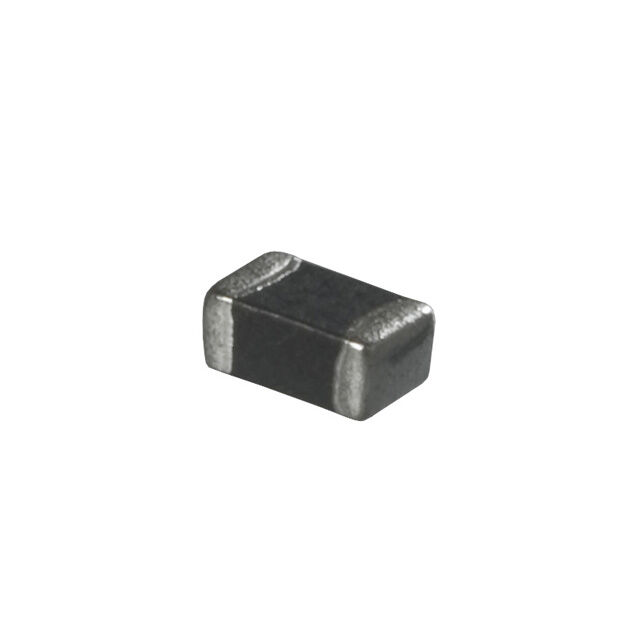

HZ0603A182R-10
ActiveLaird Technologies - Thermal Materials
FERRITE BEAD 1.8K OHM 0603 1LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HZ0603A182R-10
ActiveLaird Technologies - Thermal Materials
FERRITE BEAD 1.8K OHM 0603 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HZ0603A182R-10 |
|---|---|
| Current Rating (Max) [Max] | 50 mA |
| DC Resistance (DCR) (Max) [Max] | 1.5 Ohm |
| Filter Type | Signal Line, Power |
| Height (Max) | 0.8 mm |
| Height (Max) [Max] | 0.031 in |
| Impedance @ Frequency | 1.8 kOhms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.032 in |
| Size / Dimension [y] | 0.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 40000 | $ 0.03 | |
Description
General part information
HZ0603A182R-10
1.8 kOhms @ 100 MHz 1 Power, Signal Line Ferrite Bead 0603 (1608 Metric) 50mA 1.5Ohm
