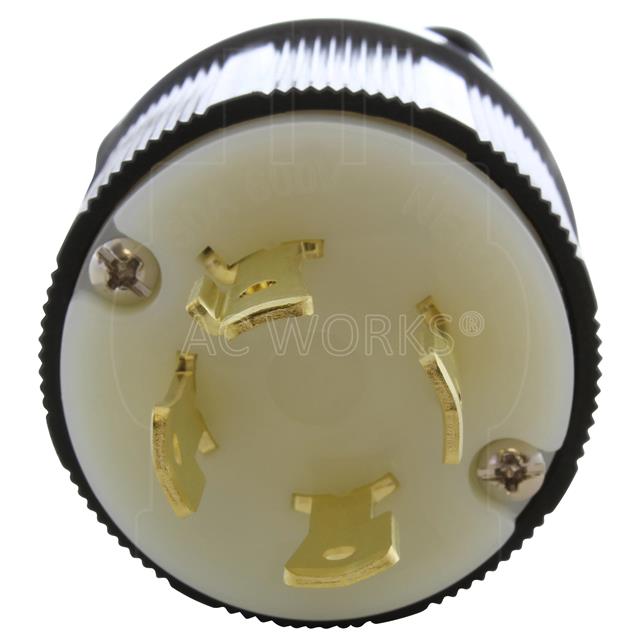

ASL1730P-BK
ActiveAC Connectors
NEMA L17-30 3 30A 600V MALE - B
Deep-Dive with AI
Search across all available documentation for this part.
ASL1730P-BK
ActiveAC Connectors
NEMA L17-30 3 30A 600V MALE - B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASL1730P-BK |
|---|---|
| Approval Agency | cULus |
| Connector Style | NEMA L17-30P |
| Connector Type | Plug, Male Blades |
| Current Rating (Amps) | 30 A |
| Features | Impact Resistant, Weather Resistant, Chemical Resistant |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 4 |
| Termination | Screw |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 29.57 | |
| 5 | $ 29.13 | |||
| 10 | $ 28.68 | |||
| 25 | $ 28.09 | |||
| 100 | $ 26.61 | |||
| 250 | $ 25.13 | |||
Description
General part information
ASL1730P-BK
Power Connector Plug, Male Blades NEMA L17-30P
Documents
Technical documentation and resources
No documents available
