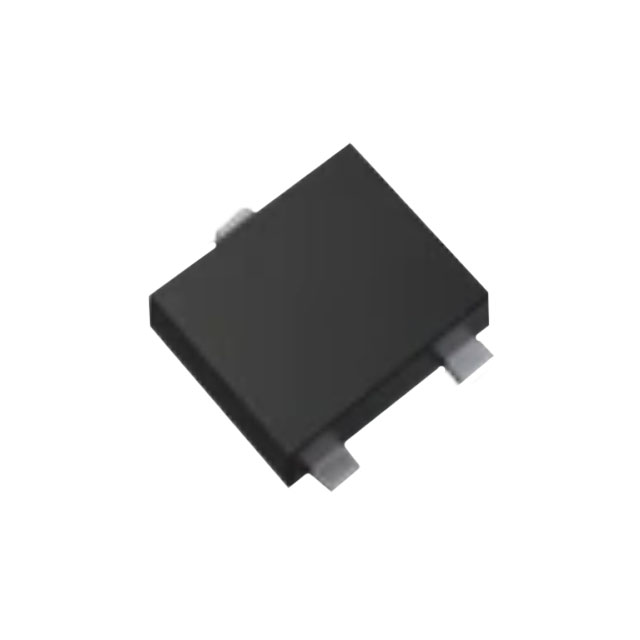

SSM3K361TU,LXHF
ActiveToshiba Semiconductor and Storage
AECQ MOSFET NCH 100V 3.5A SOT323
Deep-Dive with AI
Search across all available documentation for this part.
SSM3K361TU,LXHF
ActiveToshiba Semiconductor and Storage
AECQ MOSFET NCH 100V 3.5A SOT323
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSM3K361TU,LXHF |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3.5 A |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 3.2 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 430 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 175 °C |
| Power Dissipation (Max) | 1 W |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 69 mOhm |
| Supplier Device Package | UFM |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.97 | |
| 10 | $ 0.60 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.27 | |||
| Tape & Reel (TR) | 3000 | $ 0.20 | ||
Description
General part information
SSM3K361TU,LXHF
N-Channel 100 V 3.5A (Ta) 1W (Ta) Surface Mount UFM
