Technical Specifications
Parameters and characteristics for this part
| Specification | RS1MWF-7 |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SOD-123F |
| Reverse Recovery Time (trr) | 500 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-123F |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.28 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.28 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 3000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 9000 | $ 0.12 | |||
| LCSC | N/A | 1 | $ 0.00 | |
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.49 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
Description
General part information

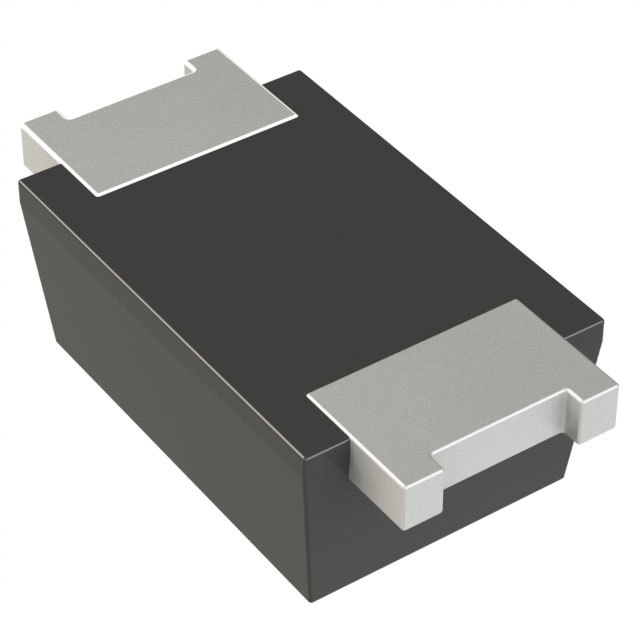

RS1MWF-7
The RS1MWF is a rectifier packaged in the small form factor, low profile SOD123F package. Providing fast recovery time for high efficiency, low reverse leakage current, and high surge current capability. This device is ideal for use in general rectification applications.
