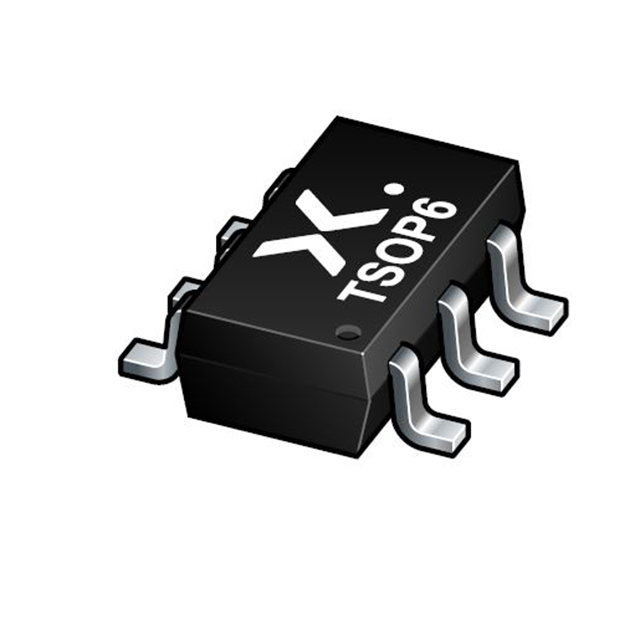

74LVC1G98GV-Q100H
ActiveFreescale Semiconductor - NXP
74LVC1G98GV-Q100/SOT457/SC-74
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74LVC1G98GV-Q100H
ActiveFreescale Semiconductor - NXP
74LVC1G98GV-Q100/SOT457/SC-74
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVC1G98GV-Q100H |
|---|---|
| Current - Output High, Low [x] | 32 mA |
| Current - Output High, Low [y] | 32 mA |
| Grade | Automotive |
| Logic Type | Configurable Multiple Function |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Number of Inputs | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Single-Ended |
| Package / Case | SC-74, SOT-457 |
| Qualification | AEC-Q100 |
| Schmitt Trigger Input | True |
| Supplier Device Package | 6-TSOP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.08 | |
| 6000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
74LVC1G98GV-Q100H
Configurable Multiple Function Configurable 1 Circuit 3 Input 6-TSOP
