TV30C400JB-G
ActiveComchip Technology
TVS DIODE 40VWM 64.5VC DO214AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TV30C400JB-G
ActiveComchip Technology
TVS DIODE 40VWM 64.5VC DO214AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TV30C400JB-G |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 46.51 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

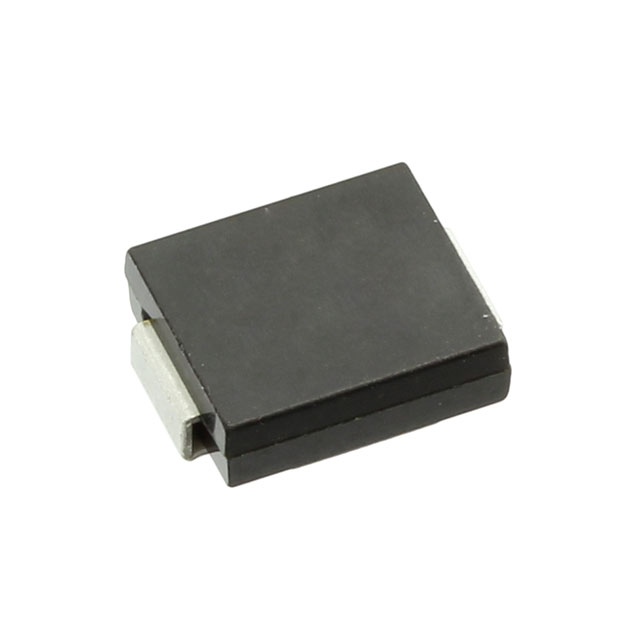

| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 3000 W |
| Power - Peak Pulse | 3 kW |
| Power Line Protection | False |
| Supplier Device Package | DO-214AB (SMC) |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 44.4 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 64.5 V |
| Voltage - Reverse Standoff (Typ) | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.51 | |
| 6000 | $ 0.49 | |||
| 9000 | $ 0.47 | |||
Description
General part information
TV30C400JB-G
64.5V Clamp 46.51A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Documents
Technical documentation and resources
