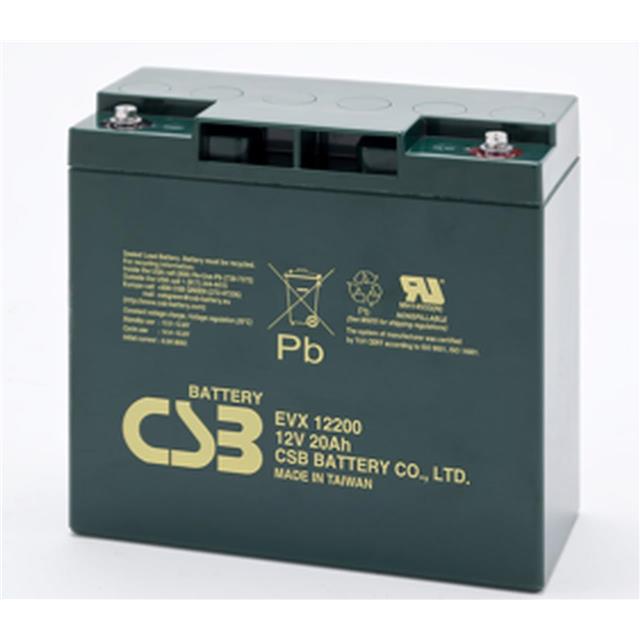

EVX12200
ActiveCSB Battery
BATTERY LEAD ACID 12V 20AH 12V
Deep-Dive with AI
Search across all available documentation for this part.
EVX12200
ActiveCSB Battery
BATTERY LEAD ACID 12V 20AH 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVX12200 |
|---|---|
| Battery Cell Size | 12 V |
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 20 Ah |
| Discharge Rate | 230 A |
| Size / Dimension [x] | 7.13 in |
| Size / Dimension [x] | 181 mm |
| Size / Dimension [y] | 2.99 in |
| Size / Dimension [y] | 76 mm |
| Size / Dimension [z] | 6.5 in |
| Size / Dimension [z] | 165 mm |
| Standard Charge Current | 6 A |
| Termination Style | Nut and Bolt, M5 |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EVX12200
12V 12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 20Ah
Documents
Technical documentation and resources
No documents available
