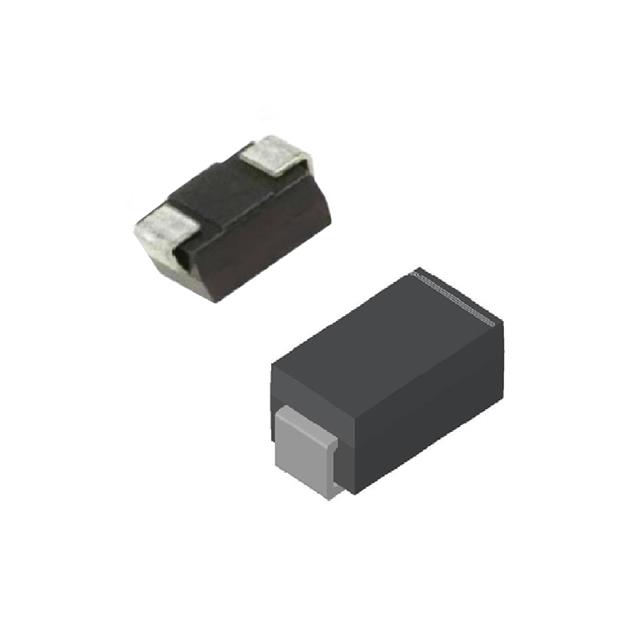

SMAJ22CA-A
ActiveYenyo Technology
TVS 400W DIODE 22VWM BI-DIR DO-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMAJ22CA-A
ActiveYenyo Technology
TVS 400W DIODE 22VWM BI-DIR DO-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMAJ22CA-A |
|---|---|
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 11.27 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | DO-214AC, SMA |
| Power - Peak Pulse | 400 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AC (SMA) |
| Type | Zener |
| Voltage - Clamping (Max) @ Ipp | 35.5 V |
| Voltage - Reverse Standoff (Typ) | 22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20 | $ 0.27 | |
| 40 | $ 0.24 | |||
| 60 | $ 0.19 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.07 | |||
| 3000 | $ 0.06 | |||
Description
General part information
SMAJ22CA-A
35.5V Clamp 11.27A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
