CSD16126
ActiveHoffman Enclosures, Inc.

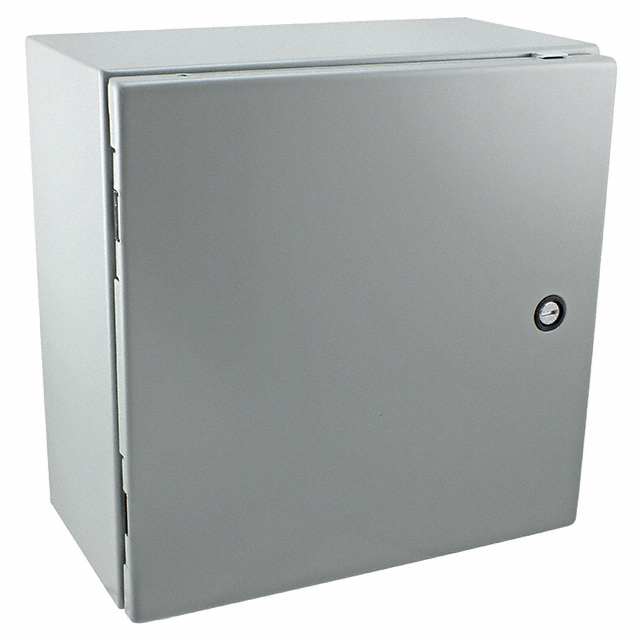

BOX STEEL GRAY 15.98"L X 12.01"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSD16126
ActiveHoffman Enclosures, Inc.
BOX STEEL GRAY 15.98"L X 12.01"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSD16126 |
|---|---|
| Area (L x W) | 1239 cm² |
| Area (L x W) | 192 in² |
| Color | Gray |
| Container Type | Box |
| Design | Hinged Door, Lid |
| Features | Sealing Gasket, Wall Mount |
| Height [z] | 5.984 in |
| Height [z] | 152 mm |
| Material | Metal, Steel |
| Size / Dimension [x] | 406 mm |
| Size / Dimension [x] | 15.984 in |
| Size / Dimension [y] | 12.008 in |
| Size / Dimension [y] | 305 mm |
| Thickness | 18 Gauge |
| Weight | 16 lbs |
| Weight | 7.3 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 401.48 | |
| 5 | $ 375.38 | |||
Description
General part information
CSD16126
Box Metal, Steel Gray Hinged Door, Lid 15.984" L x 12.008" W (406.00mm x 305.00mm) X 5.984" (152.00mm)
