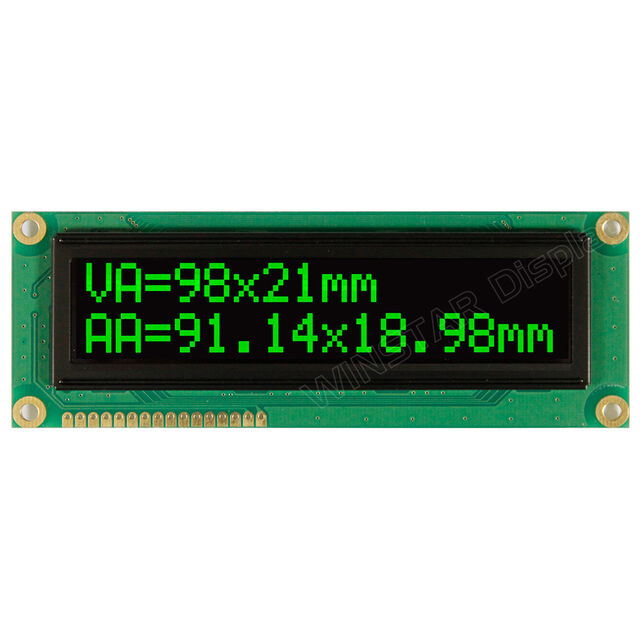

WEH001602HGPP5N00100
ActiveWinstar Display
OLED 16X2 CHARACTER DISPLAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WEH001602HGPP5N00100
ActiveWinstar Display
OLED 16X2 CHARACTER DISPLAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WEH001602HGPP5N00100 |
|---|---|
| Background Color | Green |
| Backlight | Without Backlight |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Controller Type | WS0010-TX |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Passive |
| Display Type | OLED |
| Dot Size [y] | 0.9 mm |
| Dot Size [z] | 1.06 mm |
| Number of Characters | 32 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 122 mm |
| Outline L x W x H [y] | 44 mm |
| Outline L x W x H [z] | 10 mm |
| Voltage - Supply [Max] | 5.3 V |
| Voltage - Supply [Min] | 4.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 33.32 | |
Description
General part information
WEH001602HGPP5N00100
Character Display Module Passive 5 x 8 Dots OLED Without Backlight 122.00mm x 44.00mm x 10.00mm
