B-0550SB1300-0250XF
ActiveOrbel Corporation

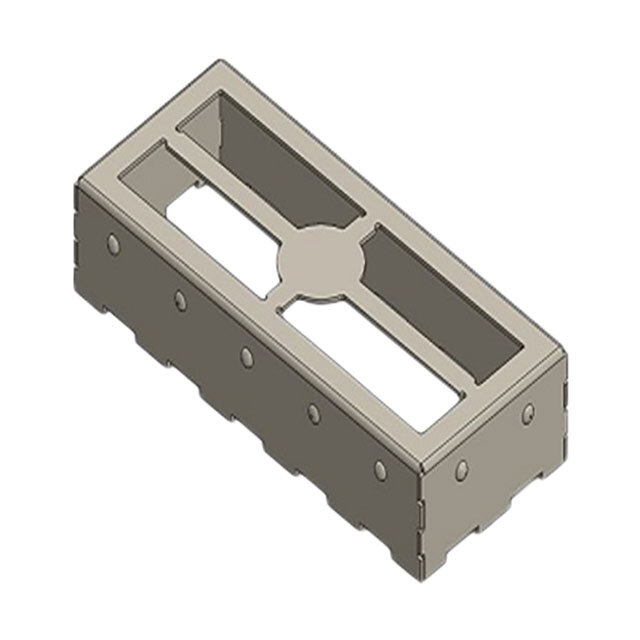

RF SHIELD 0.550" X 1.300" FRAME
Deep-Dive with AI
Search across all available documentation for this part.
B-0550SB1300-0250XF
ActiveOrbel Corporation
RF SHIELD 0.550" X 1.300" FRAME
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B-0550SB1300-0250XF |
|---|---|
| Height - Overall [z] | 6.35 mm |
| Height - Overall [z] | 0.25 in |
| Length - Overall [x] | 33.02 mm |
| Length - Overall [x] | 1.3 in |
| Mounting Type | Surface Mount |
| Type | Shield, 2-Piece |
| Ventilation | Non-Vented |
| Width - Overall [y] | 0.55 in |
| Width - Overall [y] | 13.97 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.62 | |
| 10 | $ 12.70 | |||
| 25 | $ 11.44 | |||
| 100 | $ 10.02 | |||
| 250 | $ 9.34 | |||
| 500 | $ 8.93 | |||
| 1000 | $ 8.91 | |||
Description
General part information
B-0550SB1300-0250XF
RF Shield Shield, 2-Piece 0.550" (13.97mm) X 1.300" (33.02mm) Non-Vented Surface Mount
