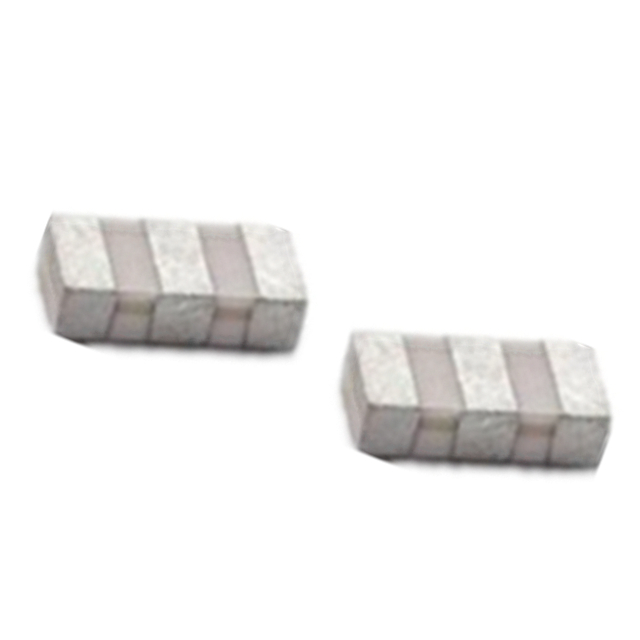

CP4M000000S030
ActiveTGS
CERAMIC RES 4MHZ 30PF SMD6030
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP4M000000S030
ActiveTGS
CERAMIC RES 4MHZ 30PF SMD6030
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP4M000000S030 |
|---|---|
| Capacitance | 30 pF |
| Features | Built in Capacitor |
| Frequency | 4 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.5 % |
| Height [z] | 1.7 mm |
| Height [z] | 0.067 in |
| Impedance | 60 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 0.118 in |
| Size / Dimension [y] | 3 mm |
| Type | Ceramic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.18 | |
Description
General part information
CP4M000000S030
4 MHz Ceramic Resonator Built in Capacitor 30 pF ±0.3% 60 Ohms -25°C ~ 85°C Surface Mount
