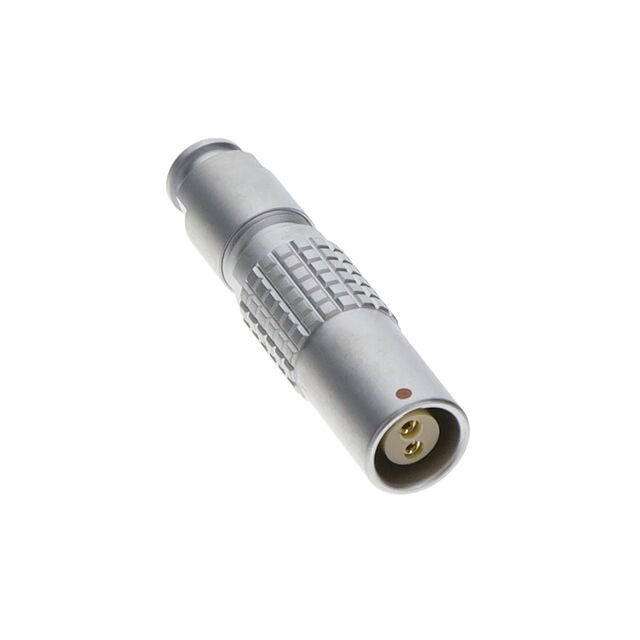

PHG.0B.302.CLLD42Z
ActiveLEMO
CONN RCPT FMALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHG.0B.302.CLLD42Z
ActiveLEMO
CONN RCPT FMALE 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PHG.0B.302.CLLD42Z |
|---|---|
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [Max] [custom] | 4.2 mm |
| Cable Opening [Max] [custom] | 0.165 in |
| Cable Opening [Min] [custom] | 0.126 in |
| Cable Opening [Min] [custom] | 3.2 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Material | Bronze |
| Current Rating (Amps) | 10 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 302 |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.46 | |
| 10 | $ 24.92 | |||
| 25 | $ 23.84 | |||
| 50 | $ 23.07 | |||
| 100 | $ 22.30 | |||
| 250 | $ 21.07 | |||
Description
General part information
PHG.0B.302.CLLD42Z
2 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
