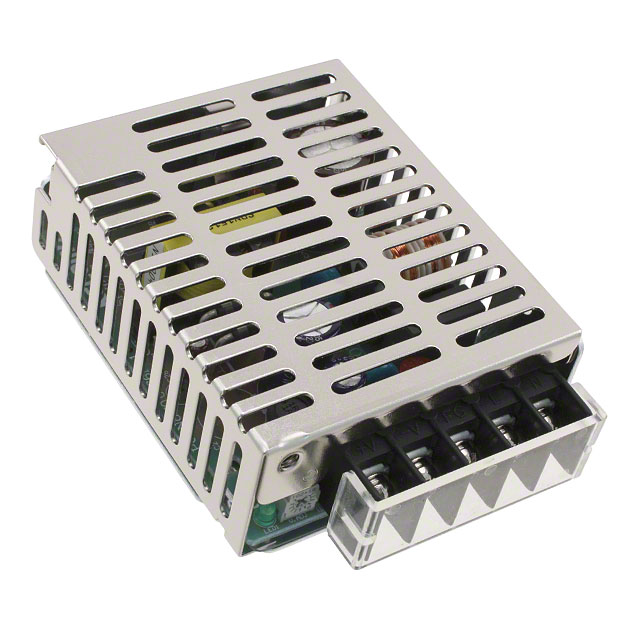

SPN15-05S
ObsoleteVolgen + Furuno
AC/DC CONVERTER 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPN15-05S
ObsoleteVolgen + Furuno
AC/DC CONVERTER 5V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPN15-05S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB |
| Current - Output 1 | 3 A |
| Efficiency | 75 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 86.5 mm |
| Size / Dimension [x] | 3.41 in |
| Size / Dimension [y] | 2.8 in |
| Size / Dimension [y] | 71 mm |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SPN15-05S
Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
