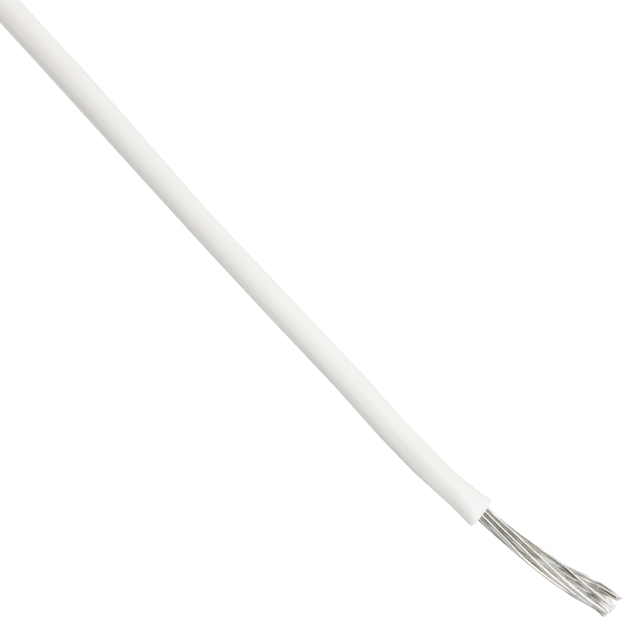

7058/19 WH005
ActiveALPHA WIRE
HOOK-UP STRND 16AWG WHT 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7058/19 WH005
ActiveALPHA WIRE
HOOK-UP STRND 16AWG WHT 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7058/19 WH005 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 0.0117 in |
| Jacket (Insulation) Diameter [diameter] | 1.93 mm |
| Jacket (Insulation) Diameter [diameter] | 0.076 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (XLPVC), Irradiated |
| Jacket (Insulation) Thickness | 0.25 mm |
| Jacket (Insulation) Thickness | 0.01 in |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Qualification | MIL-W-16878E Type B |
| Ratings | UL Style 1429 |
| Voltage | 150 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 194.33 | |
| 3 | $ 180.04 | |||
| 5 | $ 170.52 | |||
| 10 | $ 160.99 | |||
| 25 | $ 149.56 | |||
| 50 | $ 141.94 | |||
| 100 | $ 123.84 | |||
Description
General part information
7058/19 WH005
16 AWG Hook-Up Wire 19/0.0117" White 150V 100.0' (30.5m)
