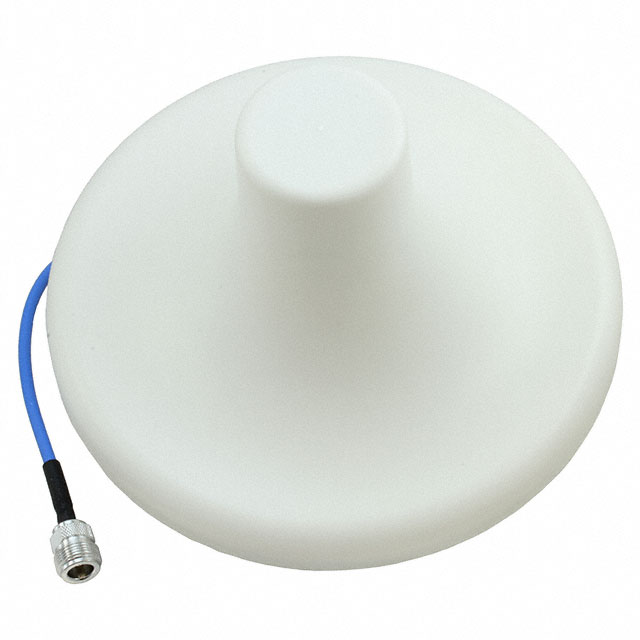

EM-B40004-NJ
ActiveNearson Inc.
RF ANT 829MHZ/2.2GHZ DOME N FEM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM-B40004-NJ
ActiveNearson Inc.
RF ANT 829MHZ/2.2GHZ DOME N FEM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM-B40004-NJ |
|---|---|
| Antenna Type | Dome |
| Frequency (Center/Band) | 2.2 GHz, 829 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 2.7 GHz |
| Frequency Range [Min] | 698 MHz, 1.71 GHz |
| Gain | 2 dBic, 5 dBi |
| Height (Max) [Max] | 114.3 mm |
| Height (Max) [Max] [z] | 4.5 " |
| Number of Bands | 2 |
| Power - Max [Max] | 50 W |
| Termination | N Type Female |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 40.17 | |
Description
General part information
EM-B40004-NJ
RF ANTENNA Dome N Type Female Panel Mount
