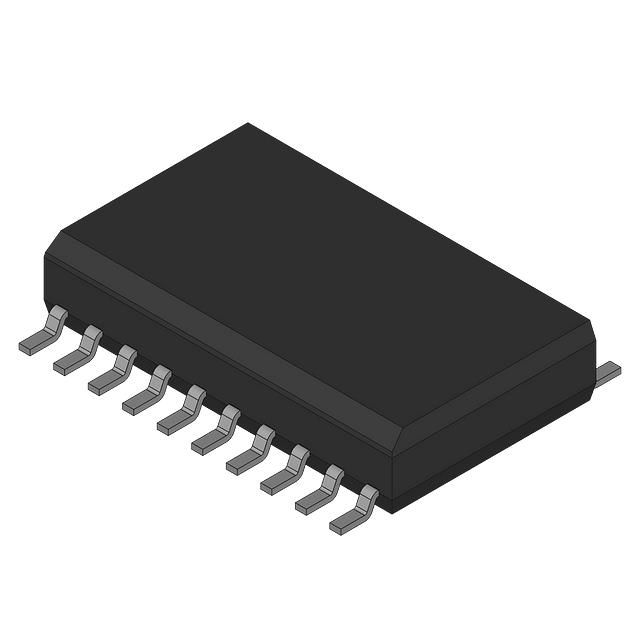

UC2879DW
ActiveUnitrode
UC2879 PHASE SHIFT RESONANT CONT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UC2879DW
ActiveUnitrode
UC2879 PHASE SHIFT RESONANT CONT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UC2879DW |
|---|---|
| Control Features | Frequency Control, Soft Start, Sync |
| Duty Cycle | 50 % |
| Fault Protection | Current Limiting |
| Frequency - Switching | 300 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Isolation | Non-Isolated |
| Package / Case | 20-SOIC |
| Package / Case [y] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Supplier Device Package | 20-SOIC |
| Topology | Full-Bridge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 36 | $ 8.42 | |
| Tube | 1 | $ 10.73 | ||
| 10 | $ 9.87 | |||
| 25 | $ 9.46 | |||
| 100 | $ 8.33 | |||
| 250 | $ 7.92 | |||
| 500 | $ 7.41 | |||
| 1000 | $ 6.80 | |||
Description
General part information
UC2879DW
Converter Offline Full-Bridge Topology 300kHz 20-SOIC
