32207638
ActiveYageo Nexensos

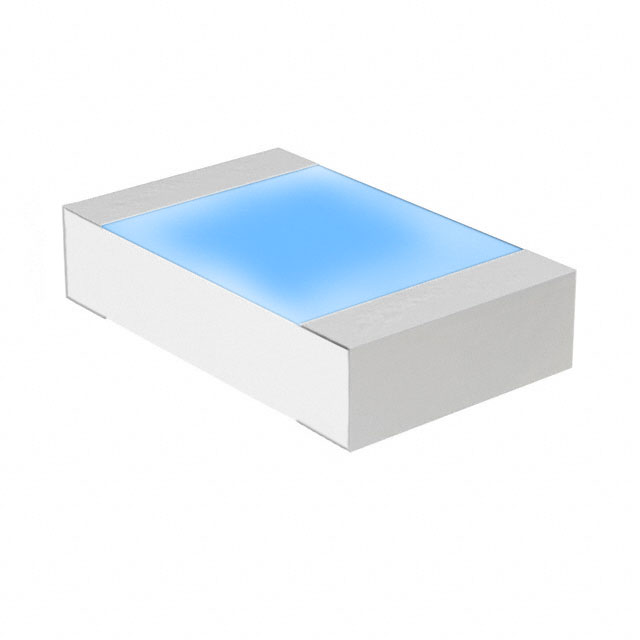

SENSOR RTD 1KOHM 0.3% 0603
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
32207638
ActiveYageo Nexensos
SENSOR RTD 1KOHM 0.3% 0603
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 32207638 |
|---|---|
| Accuracy | 0.3 °C |
| Current | 0.3 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | 0603 (1608 Metric) |
| Resistance @ 0°C | 1000 Ohms |
| Resistance Tolerance | 0.12 % |
| RTD Material | Platinum (Pt) |
| Temperature Coefficient | 3850 ppm/°C |
| Termination | SMD (SMT) Tabs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.98 | |
| 10 | $ 2.43 | |||
| 25 | $ 1.97 | |||
| 50 | $ 1.83 | |||
| 100 | $ 1.74 | |||
| 500 | $ 1.46 | |||
| Digi-Reel® | 1 | $ 2.98 | ||
| 10 | $ 2.43 | |||
| 25 | $ 1.97 | |||
| 50 | $ 1.83 | |||
| 100 | $ 1.74 | |||
| 500 | $ 1.46 | |||
| Tape & Reel (TR) | 1000 | $ 1.37 | ||
| 3000 | $ 1.33 | |||
| 5000 | $ 1.28 | |||
Description
General part information
32207638
1 kOhms RTD Platinum (Pt) ±0.3% 3850ppm/°C 0603 (1608 Metric)
