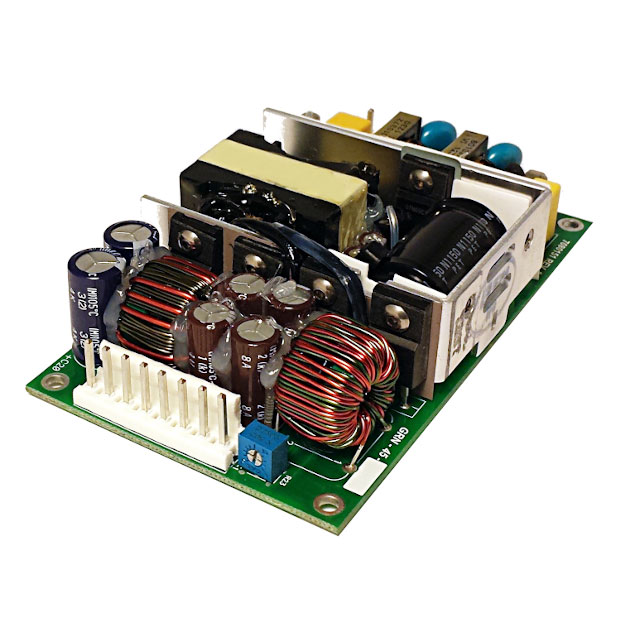

1011398
ActiveIntegrated Power Designs
AC/DC CONVERTER 5V 12V 45W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1011398
ActiveIntegrated Power Designs
AC/DC CONVERTER 5V 12V 45W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1011398 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output 1 | 5 A |
| Current - Output 2 | 2 A |
| Efficiency | 85 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 4.25 in |
| Size / Dimension [x] | 108 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [z] | 21.1 mm |
| Size / Dimension [z] | 0.83 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.92 | |
| 25 | $ 72.53 | |||
| 100 | $ 70.56 | |||
Description
General part information
1011398
Open Frame AC DC Converters 2 Output 5V 12V 85 ~ 264 VAC Input
