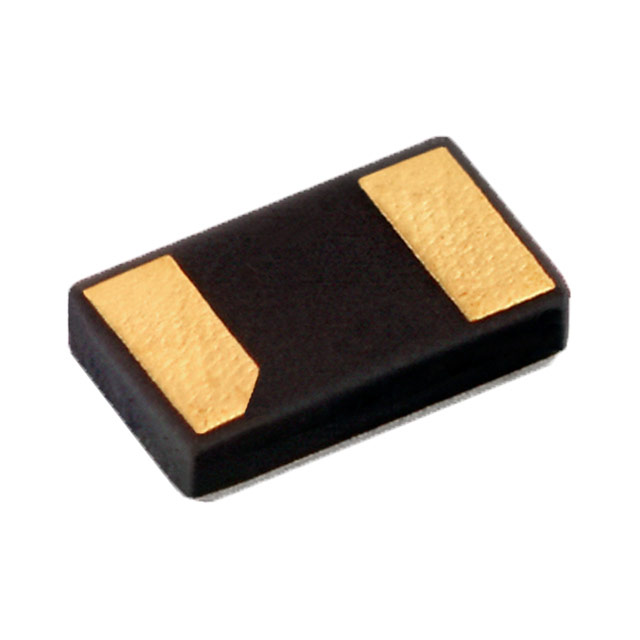

CM9V-T1A-32.768KHZ-7PF-100PPM-TA-QC
ActiveMicro Crystal AG
CRYSTAL 32.7680KHZ 7PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CM9V-T1A-32.768KHZ-7PF-100PPM-TA-QC
ActiveMicro Crystal AG
CRYSTAL 32.7680KHZ 7PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CM9V-T1A-32.768KHZ-7PF-100PPM-TA-QC |
|---|---|
| ESR (Equivalent Series Resistance) | 90 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 100 ppm |
| Height - Seated (Max) [Max] [z] | 0.5 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Load Capacitance | 7 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.039 " |
| Size / Dimension [y] | 1 mm |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.63 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.63 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.49 | |||
| Tape & Reel (TR) | 1000 | $ 0.33 | ||
| 2000 | $ 0.32 | |||
Description
General part information
CM9V-T1A-32.768KHZ-7PF-100PPM-TA-QC
32.768 kHz ±100ppm Crystal 7pF 90 kOhms 2-SMD, No Lead
