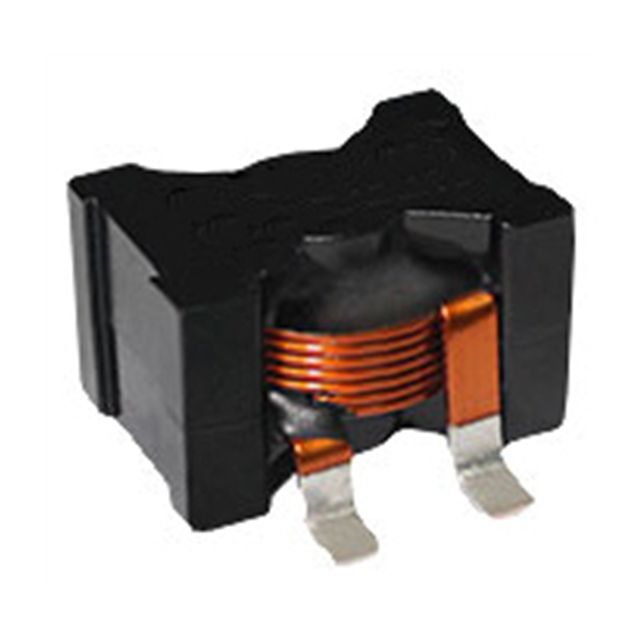

MTP2915150ML01
ActiveCOILMX
INDUCTANCE 15 H TOL 20%
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTP2915150ML01
ActiveCOILMX
INDUCTANCE 15 H TOL 20%
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTP2915150ML01 |
|---|---|
| Current - Saturation (Isat) | 16 A |
| Current Rating (Amps) | 30 A |
| DC Resistance (DCR) [Max] | 3 mOhm |
| Height - Seated (Max) | 15.5 mm |
| Height - Seated (Max) [Max] | 0.61 " |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.102 in |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 0.748 in |
| Size / Dimension [y] | 19 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 320 | $ 2.36 | |
Description
General part information
MTP2915150ML01
15 µH Unshielded Drum Core, Wirewound Inductor 30 A 3mOhm Max Radial
